Filters backed by 50+ years of engineering experience

AboutThe Filter Factory, Inc. consists of a unique blend of air filtration experience and customer service. Our product knowledge covers HVAC filters to HEPA filters; furnace to rangehood and cabin air to electronic cabinet filtration. Our focus is on, but not limited to unique and special applications.Our engineering skills and experience go back more than 50+ years and because we are not overloaded with layers of management, we are able to respond to needed changes quickly. Most importantly we are a filter manufacturing company.
We are here to meet the growing needs for air filtration and look forward to giving our customers what they need, when they need it, and at a competitive price.Now you can have our up-to-the-minute FULL product catalog. With just a click of your mouse the catalog downloads for permanent reference and includes complete descriptions, specifications, and photos of our entire line of air filters and filtration systems.
L. Robert Baker
President | The Filter Factory, Inc.

Filter Factory vs The CompetitionWhen you are choosing air filters for your application, you will have the choice to work with either a specialized air filter company like The Filter Factory, Inc. or a general supplier. As a professional air filter manufacturer, we want to highlight a few distinct differences between working with a dedicated filter expert and a typical supplier.

Filter FactoryAt The Filter Factory, Inc., we pride ourselves on delivering exceptional quality and expertise in air filtration. Our filters are meticulously crafted with high-grade materials, undergoing rigorous testing to ensure they meet stringent industry standards and provide reliable, long-lasting performance. With over 50 years of experience, our team of seasoned professionals excels in designing custom solutions tailored to unique filtration needs, leveraging the latest technologies to stay ahead of industry trends. Customer satisfaction is our top priority; we offer personalized and responsive service, quick turnaround times, and comprehensive support to ensure you receive the best filtration solutions and advice.

VS

The CompetitionIn contrast, many other companies in the air filtration industry often fall short in key areas. They frequently use lower-quality materials and outdated technologies, leading to inconsistent product performance and shorter filter lifespans. With limited experience and a lack of expertise, they typically provide generic, one-size-fits-all solutions that may not meet specific requirements. Customer service is often impersonal and inadequate, with delayed responses and insufficient support, resulting in a less satisfactory overall experience. These companies tend to prioritize cost-cutting over quality and innovation, ultimately compromising the effectiveness and reliability of their filters.

Products

cabin air filtration

Cabin Air FiltrationCabin Air filters are used to protect equipment operators from hostile conditions in their operating environment.

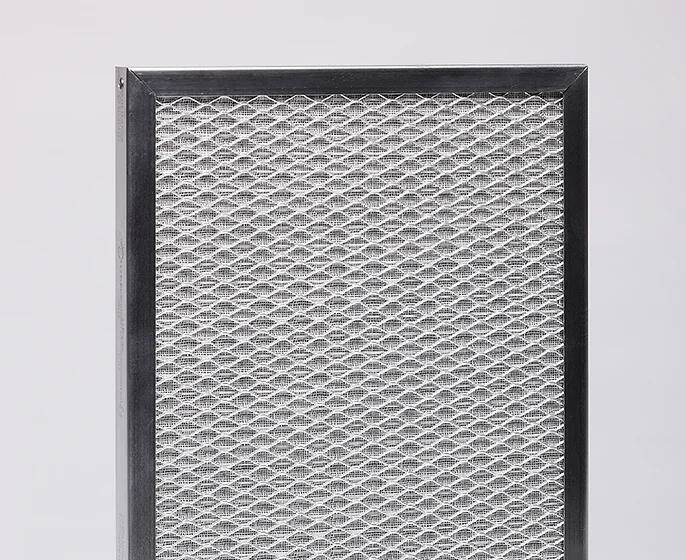

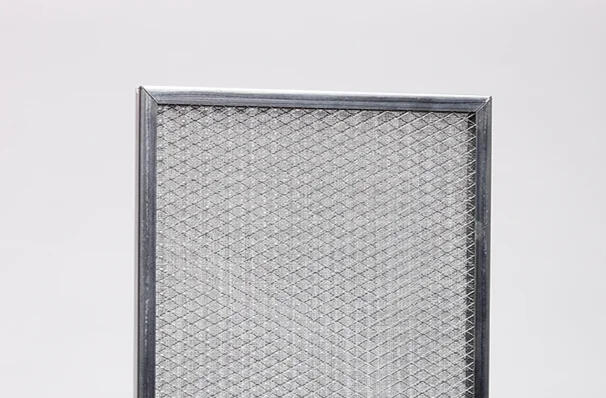

Furnace/HVAC Filters

Furnace/HVACFurnace or HVAC filters are used for heating, ventilating, or air conditioning and forced air systems.

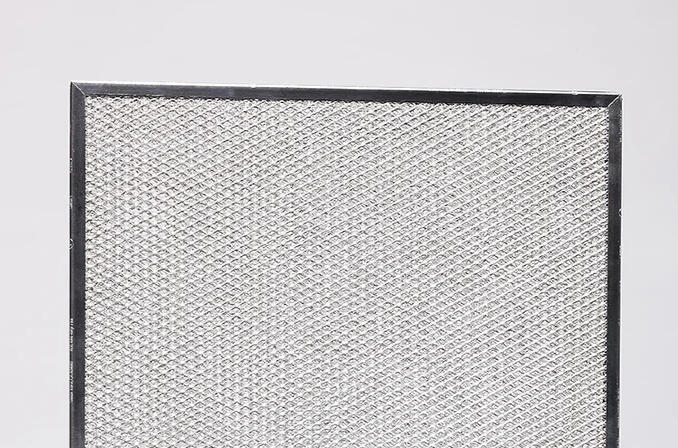

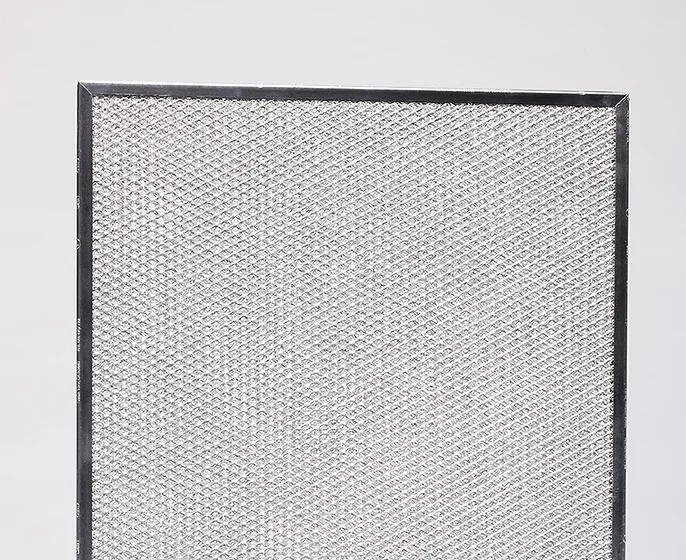

rangehood / grease filters

Rangehood / GreaseRangehood or Grease filters are used above or around range tops to prevent grease and spatter from entering the fan.

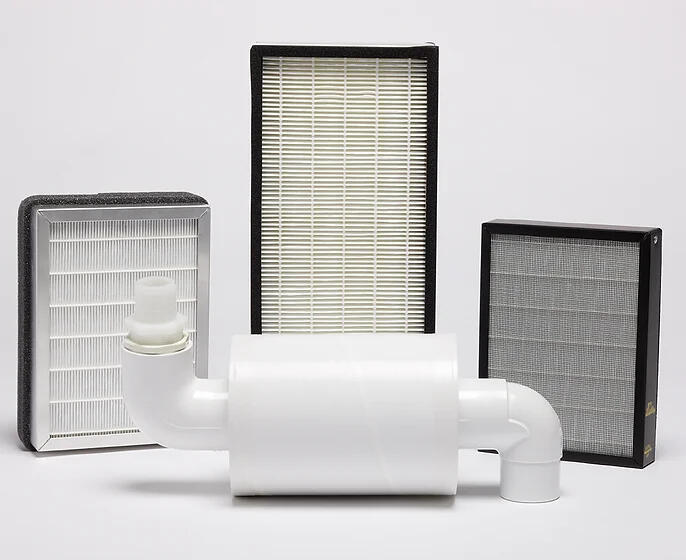

hepa filters

HEPAHEPA filters are used in clean rooms and other applications where submicronic contamination is a threat.

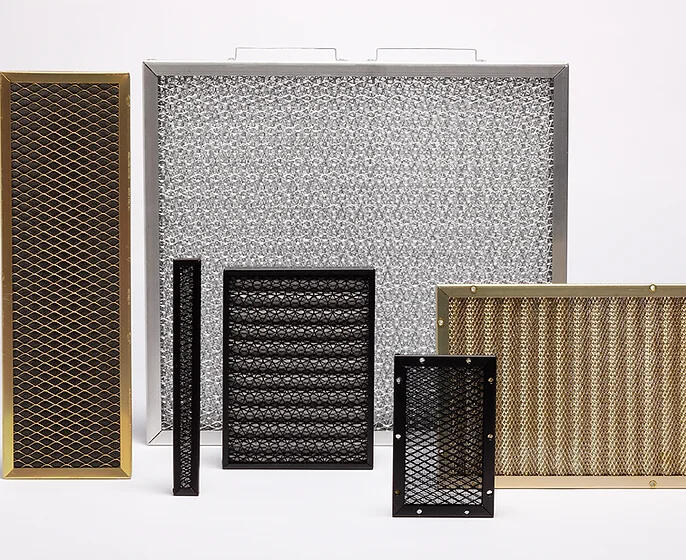

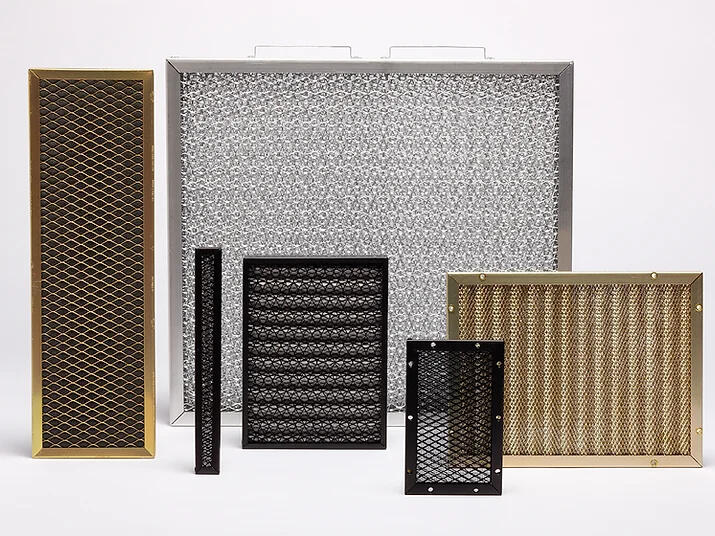

electronic cabinet filters

Electronic CabinetElectronic Cabinet filters are used to clean air brought into electronic enclosures for cooling purposes.


Products

Techx FiltersTECHX filtration media is a mixture of polypropylene and modacrylic fibers. The exchange of electric charge between these dissimilar materials produces stable static electric charges. This creates a greatly improved filtration media to trap fine particles. This media corrugated together with expanded metal makes up the inner layers of this filter. The face grids are made of heavy expanded aluminum in a one piece mitered corner aluminum frame held by an aluminum blind rivet.

Cellx FiltersCELLX filters are found in environments where machine operators need protection from the hostile environments their equipment is built to work in. This filter is built to withstand the rough handling associated with frequent inspection and cleaning. A definite advantage of this filter is the flexibility in size, shape efficiency and pressure that we are able to offer.

Combx FiltersThe COMBX filter is designed to fit your application in a variety of materials. We offer a wide selection of bonding materials and frame materials. The filter media is typically made up of three layers of particulate and odor filtration medias, most often a combination of laminated medias. These can be our standard webbing with carbon granules and electret or we can use HEPA media or we can use a tuned carbon media.

Hepax FiltersHEPAX air filters are a minimum of 99.97% efficient on .3 micron particles unless otherwise specified by the customer. The filtration media for these filters is micro glass fiber media. The filters are constructed in the minipleat design. We are not building filters with aluminum separators between the pleats. The frame material available for these filters is steel, aluminum, or plastic. HEPAX is available in a variety of thicknesses determined by application. Gasket is usually neoprene, but is also available in IV2. Filters may be pressure tested and we also offer efficiency testing.

Products

Foilx FiltersFOILX air filters are composed of aluminum foil that has been slit and expanded. The filtration media for this filter consists of either flat expanded foil or layers of corrugated expanded foil, depending on frame thickness. The face grids are expanded aluminum.

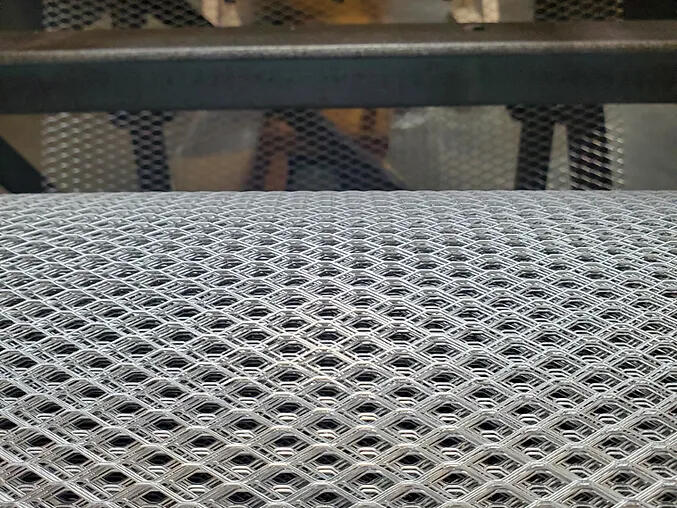

Exmet FiltersEXMET filtration media consists of layers of slit and expanded aluminum. Inner layers are flat or corrugated grids of expanded aluminum. Face grids are heavy expanded aluminum. Frame is aluminum channel.

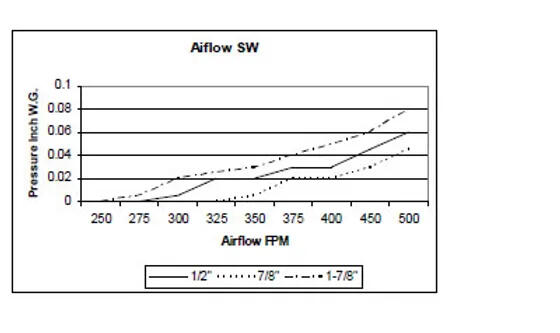

SW/SWX FiltersSW and SWX filtration media is either flat or corrugated wire cloth. SW is made up of all woven aluminum wire. SWX is made up of face grids of expanded aluminum and inner layer of woven aluminum wire.

Carbx FiltersCARBX filters have filtration media which is composed of two parts. A coated non-woven polyester media which has an inherent captive capillary effect for particles and an activated carbon surface area exposure for maximum adsorption efficiency. The media is encapsulated by expanded aluminum face grids and an aluminum frame.

Products

Techx FiltersTECHX filtration media is a mixture of polypropylene and modacrylic fibers. The exchange of electric charge between these dissimilar materials produces stable static electric charges. This creates a greatly improved filtration media to trap fine particles. This media corrugated together with expanded metal makes up the inner layers of this filter. The face grids are made of heavy expanded aluminum in a one piece mitered corner aluminum frame held by an aluminum blind rivet.

Polyx FiltersPOLYX air filters are made of progressively bonded uniform non-woven polyester filtration media, with expanded aluminum face grids and an aluminum. The polyester is manufactured using advanced technology air laid equipment. This process produces a media of high quality, uniformity, and excellent filtration performance.

SW/SWX FiltersSW and SWX filtration media is either flat or corrugated wire cloth. SW is made up of all woven aluminum wire. SWX is made up of face grids of expanded aluminum and inner layer of woven aluminum wire.

Foamx FiltersFOAMX filtration media is fully reticulated polyurethane filter foam. The face grids are expanded aluminum. Enclosing the foam and grids is an aluminum frame.

Foilx FiltersFOILX air filters are composed of aluminum foil that has been slit and expanded. The filtration media for this filter consists of either flat expanded foil or layers of corrugated expanded foil, depending on frame thickness. The face grids are expanded aluminum.

Foamx/HF1 FiltersFOAMX-HF1 offers all the filtration characteristics of the rest of the FOAMX filter line with one added benefit, the UL 94 HF1 certification. According to the Telcordia specifications all foamed polymers are to hold a UL 94 rating of not less than HF 1. The Filter Factory has received numerous requests for this grade of filtration protection for equipment using blowers to maintain optimum thermal and dust free conditions. The FOAMX-HF1 is available in our large variety thicknesses and any size or shape to fit your application.

Products

Electrx Filters
The ELECTRX is designed to be the filter you depend on for years of service. We build this filter with heavy-duty frame and face grids to provide protection from frequent cleanings. The business end of this filter is made of multiple layers of either reticulated foam or random fiber polyester and antimicrobial polypropylene. These combinations offer the highest static electric charge possible for this type of media construction.

Econx FiltersECONX air filters are composed of progressive density laminated expanded aluminum foil media. The filtration media is made up of multiple layers of expanded aluminum foil held together by a binder material, depending on frame thickness this filter may consist of either one or two layers. Frame is a miter cornered aluminum channel secured by an aluminum blind rivet.

Polyx FiltersPOLYX air filters are made of progressively bonded uniform non-woven polyester filtration media, with expanded aluminum face grids and an aluminum. The polyester is manufactured using advanced technology air laid equipment. This process produces a media of high quality, uniformity, and excellent filtration performance.

Indx FiltersINDX media consists of layers of corrugated wire cloth with face grids of expanded galvanized steel. They have either an aluminum or steel miter cornered channel frame.

Mistx FiltersThe MISTX is designed to offer moisture or oil mist laden air cool metal surfaces to condense on which removes these corrosives from the air. The Mistx operates most effectively at 450 fpm to 550 fpm with an efficiency of >90% on moisture droplets > 20 micrometers. The filter also acts as a particulate filter due to its design of multiple layers of woven wire, which become wet as the filter starts removing moisture and oil from the air stream. Their construction of galvanized steel insures their long life even through rough handling and frequent cleaning.

Techx FiltersTECHX filtration media is a mixture of polypropylene and modacrylic fibers. The exchange of electric charge between these dissimilar materials produces stable static electric charges. This creates a greatly improved filtration media to trap fine particles. This media corrugated together with expanded metal makes up the inner layers of this filter. The face grids are made of heavy expanded aluminum in a one piece mitered corner aluminum frame held by an aluminum blind rivet.

Products

Hepax FiltersHEPAX air filters are a minimum of 99.97% efficient on .3 micron particles unless otherwise specified by the customer. The filtration media for these filters is micro glass fiber media. The filters are constructed in the minipleat design. We are not building filters with aluminum separators between the pleats. The frame material available for these filters is steel, aluminum, or plastic. HEPAX is available in a variety of thicknesses determined by application. Gasket is usually neoprene, but is also available in IV2. Filters may be pressure tested and we also offer efficiency testing.

Techx FiltersTECHX filtration media is a mixture of polypropylene and modacrylic fibers. The exchange of electric charge between these dissimilar materials produces stable static electric charges. This creates a greatly improved filtration media to trap fine particles. This media corrugated together with expanded metal makes up the inner layers of this filter. The face grids are made of heavy expanded aluminum in a one piece mitered corner aluminum frame held by an aluminum blind rivet.

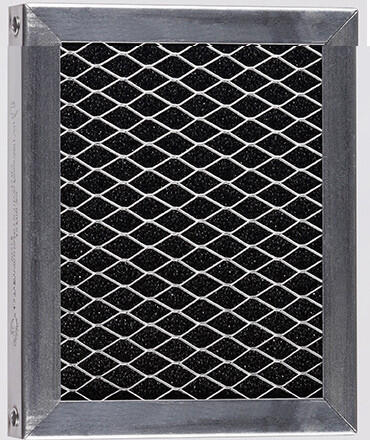

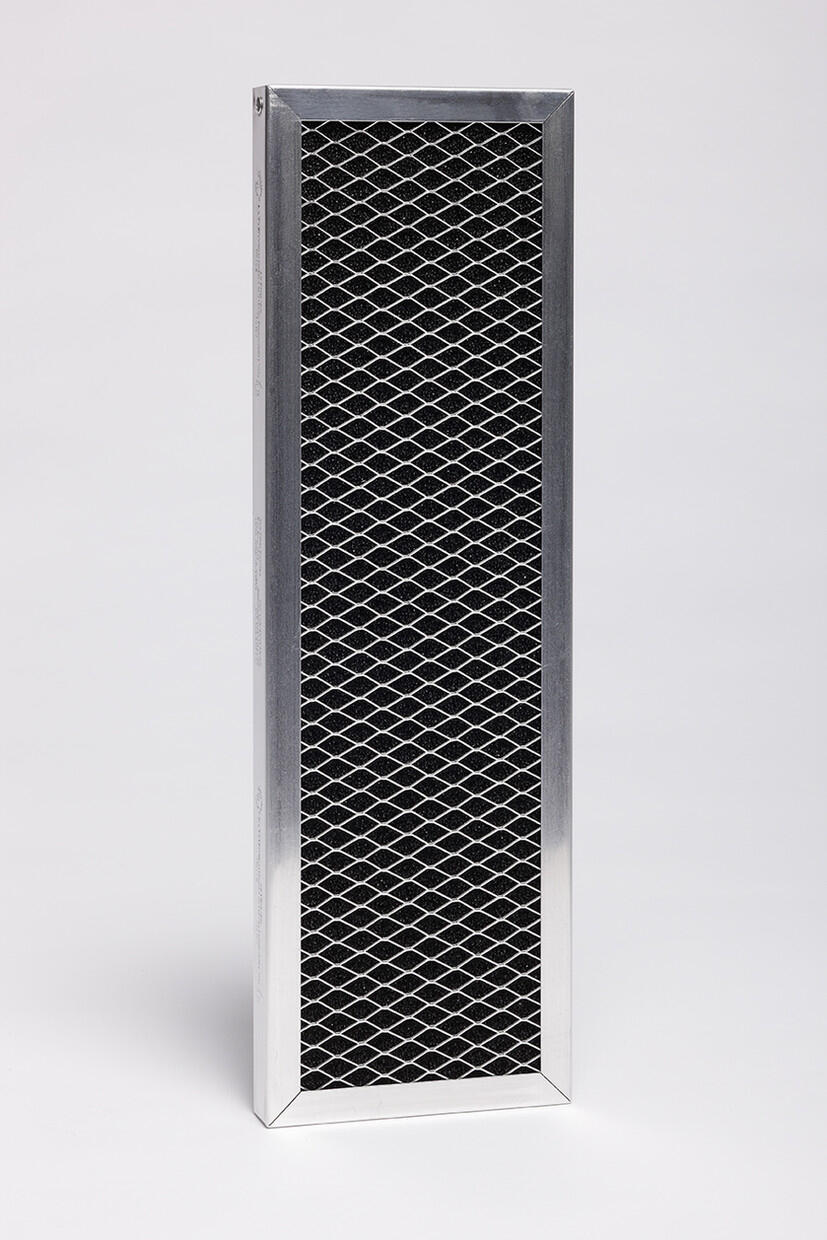

CarbX filter

CarbX

CARBX filters have filtration media which is composed of two parts. A coated non-woven polyester media, which has an inherent captive capillary effect for particles and an activated carbon surface area exposure for maximum adsorption efficiency. The media is encapsulated by expanded aluminum face grids and an aluminum frame.

ApplicationsThe CARBX is designed to meet the challenge of improving indoor air quality. It can be used anywhere fumes and odors are perceived as a nuisance. These filters are typically used in motels, hotels, airports, doctor's offices, office buildings, homes, restaurants, and many other facilities.Typical SpecificationsFrame:
.025 aluminum channel
Closure:
Aluminum blind rivet
Filtration Media:
Non-woven carbon impregnated polyester
Face Grids:
Slit and expanded aluminum
Tolerances:
Length ± 1/16, width ± 1/16, thickness ± 1/32
Thicknesses:
3/8, 3/16, 1/2, 3/4, 7/8, 1 7/8
(Other thicknesses may be available.)
Finishes:
Chemical film, Clear or Gold Irridite, Clear or Black Anodize (available upon request)
Standards:
CARBX filtration media carries an Underwriters Laboratories 900 Class 2 listingASHRAE Standard 52Average Arrestance: 86%Test conducted at 500 FPM
Efficiency:
MERV 8
Airflow:

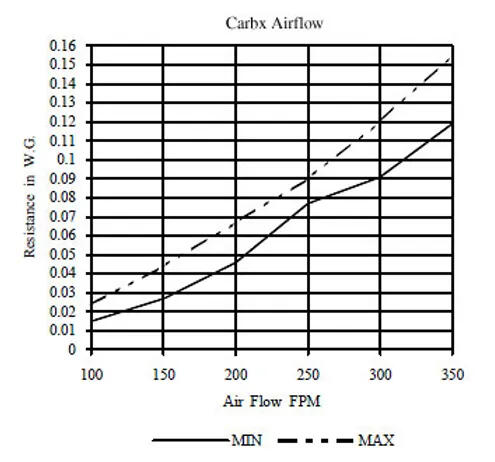

CarbX filter chart
Cellx filter

Cellx

The CELLX is designed to fit your application in a variety of materials. We offer a wide selection of bonding materials and frame materials. The filtration media is cellulose paper, which comes in a large range of efficiencies and resistances. You define shape, size, efficiency, and \or pressure drop. We can help you a little or a lot depending on your comfort with the engineering process.

ApplicationsCELLX filters are found in environments where machine operators need protection from the hostile environments their equipment is built to work in. This filter is built to withstand the rough handling associated with frequent inspection and cleaning. A definite advantage of this filter is the flexibility in size, shape efficiency and pressure that we are able to offer.Typical SpecificationsFrame:
Galvanized Steel, Aluminum or Plastic
Closure:
Solvent bonding or Rivets
Filtration Media:
Vinyl Acetate Cellulose Paper Pleats
Face Grids:
Slit and expanded galvanized steel
Tolerances:
Length ± 1/16, width ± 1/16, thickness ± 1/32
Gasket:
Close cell neoprene with PSA one side
Frazier Permeability:
84 CFM

Combx filters

Combx

The COMBX is designed to fit your application in a variety of materials. We offer a wide selection of bonding materials and frame materials. The filter media is typically made up of three layers of particulate and odor filtration medias, most often a combination of laminated medias. These can be our standard webbing with carbon granules and electret or we can use HEPA media or we can use a tuned carbon media.

ApplicationsCOMBX filters are found where machine operators not only need protection from the hostile environments, but also require comfort to perform their daily work. This filter is usually found inside the cabin of their truck or tractor and offers filtration of not only particulate contamination but odors as well.Typical SpecificationsFrame:
Steel, Aluminum or Plastic
Closure:
Solvent bonding or Rivets
Filtration Media:
Webbing, Carbon Granules, Electret, Cellulose, HEPA media
Tolerances:
Length ± 1/16, width ± 1/16, thickness ± 1/32
Gasket:
Close cell neoprene with PSA one side

Econx filter

Econx

ECONX air filters are composed of progressive density laminated expanded aluminum foil media. The filtration media is made up of multiple layers of expanded aluminum foil held together by a binder material, depending on frame thickness this filter may consist of either one or two layers. Frame is a miter cornered aluminum channel secured by an aluminum blind rivet.

ApplicationsThis filter is commonly used in electronic equipment, package air conditioning units, home heating and air conditioning & heating central units and many other applications where large particles may be an issue. This filter is also relatively easy to clean. This filter is built in stock sizes and specialty sizes as well.Typical SpecificationsFrame:
.025 Aluminum channel
Closure:
Aluminum blind rivet
Filtration Media:
Progressive density laminated expanded foil pad
Face Grids:
Slit and expanded aluminum
Tolerances:
Length ± 1/16, width ± 1/16, thickness ± 1/32
Thicknesses:
½, ¾, 7/8, 1 7/8
(other thicknesses may be available)
Standard sizes:
In stock
12 x 24 x 1 or 2, 16 x 20 x 1 or 2, 16 x 25 x 1 or 2,
20 x 20 x 1 or 2, 20 x 25 x 1 or 2, 24 x 24 x 1 or 2
Finishes:
Chemical film, Clear or Gold Irridite, Clear or Black Anodize (available upon request)
Standards:
ECONX filtration media carries an Underwriters Laboratories 900 Class 2 listing.
ASHRAE Standard 52
12
Average Arrestance: 50% 57%
Test conducted at 350 FPM
Efficiency:
MERV 4
Airflow:

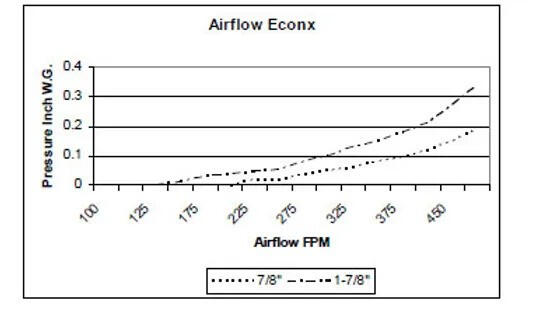

Econx filter airflow chart
Electrx filter

Electrx

The ELECTRX is designed to be the filter you depend on for years of service. We build this filter with heavy-duty frame and face grids to provide protection from frequent cleanings. The business end of this filter is made of multiple layers of either reticulated foam or random fiber polyester and antimicrobial polypropylene. These combinations offer the highest static electric charge possible for this type of media construction.

ApplicationsELECTRX filters are used in environments where pollen or dust tend to be a problem. The low resistance to airflow and increased efficiency makes this filter is an excellent choice for residential applications. The ELECTRX filter has increased efficiency because it does not depend on strictly the mechanical method of particulate control. Its dissimilar plastic medias create a static charge that enhances the filter’s ability to trap and hold dust. This filter is built to withstand years of cleaning.Typical SpecificationsFrame:
.040 Aluminum
Closure:
1 – 2 Aluminum rivets
Filtration Media:
Random fiber polyester, reticulated foam, antimicrobial polypropylene
Face Grids:
Slit and expanded aluminum
Tolerances:
Length ± 1/16, width ± 1/16, thickness ± 1/32
Thicknesses:
1/2, 7/8, 1 3/4
Efficiency:
MERV
Airflow:

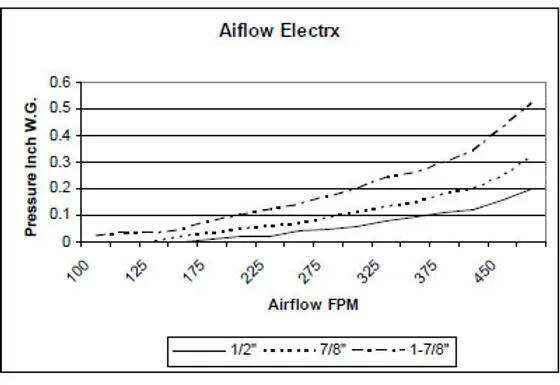

Electrx filter airflow chart
Exmet filter

Exmet

EXMET filtration media consists of layers of slit and expanded aluminum. Inner layers are flat or corrugated grids of expanded aluminum. Face grids are heavy expanded aluminum. Frame is aluminum channel.

ApplicationsThis type of panel pre-filter is particularly suitable in applications where frequent servicing and rough handling may occur. Low resistance and heavy duty construction make the EXMET an excellent large particle filter where ease of cleaning is necessary. Frequent washings do not affect the media. EXMET filters are commonly used in air handling units and ahead of bag filter banks where extended media filters offer too much pressure drop. Another common application for this filter type would be as a grease filter.Typical SpecificationsFrame:
.025 aluminum channel
Closure:
Aluminum blind rivet
Filtration Media:
Layers of expanded aluminum together
Face Grids:
Slit and expanded aluminum
Tolerances:
Length ± 1/16, width ± 1/16, thickness ± 1/32
Thicknesses:
3/8, 3/16, 1/2, 3/4, 7/8, 1 7/8
(Other thicknesses may be available.)
Finishes:
Chemical film, Clear or Gold Irridite, Clear or Black Anodize (available upon request)
Standards:
ASHRAE Standard 52
EXMET filtration media carries an Underwriters Laboratories 900 Class 1 listing
Arrestance efficiency:
1" - 73%
2" - 75%
Airflow:

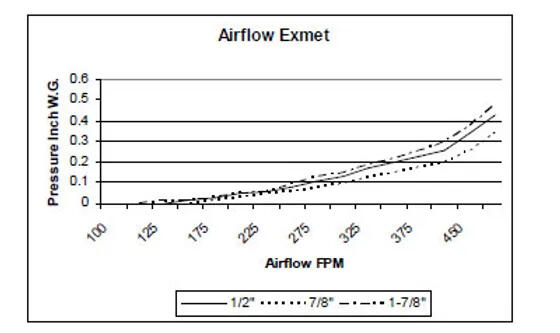

Exmet filter airflow chart
Foamx filter airflow chart

Foamx

FOAMX filtration media is fully reticulated polyurethane filter foam. The face grids are expanded aluminum. Enclosing the foam and grids is an aluminum frame.

ApplicationsThe FOAMX has a wide variety of uses because of the porosity’s available in the foam. The foam can be from 10 to 100 pores per lineal inch (PPI). As the PPI of the foam increases so does the air resistance. This type of filter is typically used in engine breathers, oil mist eliminators, muffin fan filters, and on electronic cabinets. The filter is not only effective but is also aesthetically pleasing with the black foam and the aluminum frame. These filters have been mounted on the front of many electronic cabinets as an appealing visual accent in addition to their functionality.Typical SpecificationsFrame:
.025 aluminum channel
Closure:
Aluminum blind rivet
Filtration Media:
10 - 100 pores per lineal inch (PPI)
Face Grids:
Slit and expanded aluminum
Tolerances:
Length ± 1/16, width ± 1/16, thickness ± 1/32
Thicknesses:
3/32, 1/4, 5/16, 3/8, 7/16, 1/2, 3/4, 7/8, 1 7/8,
(other thicknesses may be available)
Finishes
Chemical film, Clear or Gold Irridite, Clear or Black Anodize (available upon request)
Standards:
FOAMX filtration media carries an Underwriters Laboratories 900 Class 2 listing
ASHRAE Standard 52
Average Arrestance: 63%
Efficiency:
MERV 4
Airflow

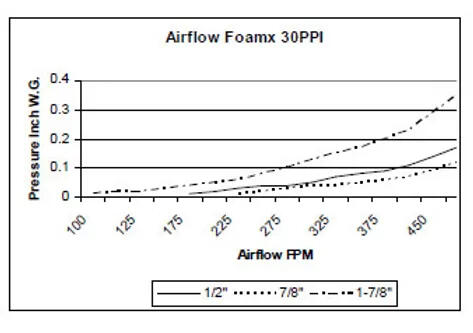

Foamx 30PPI airflow chart

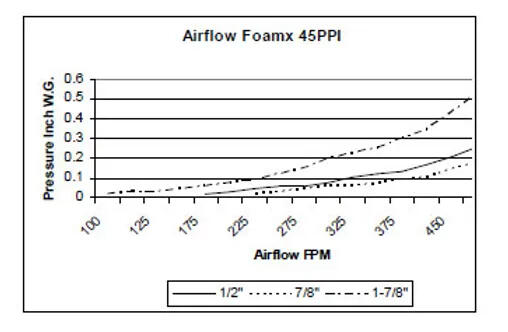

Foamx 45PPI airflow chart
Foamx/HF1 filter

Foamx/HF1

FOAMX/HF1 offers all the filtration characteristics of the rest of the FOAMX filter line with one added benefit, the UL 94 HF-1 certification. According to the Telcordia specifications all foamed polymers are to hold a UL 94 rating of not less than HF 1. The Filter Factory has received numerous requests for this grade of filtration protection for equipment using blowers to maintain optimum thermal and dust free conditions. The FOAMX-HF1 is available in our large variety thicknesses and any size or shape to fit your application.

ApplicationsThe FOAMX/HF1 is designed for applications where Telcordia NEBS specifications adherence is required. The rich black media offers an excellent finish to louvers and vents, which require low air flow resistance and protections from environmental contaminants.Typical SpecificationsFrame:
.025 or .040 3003H14 Rolled aluminum channel
Closure:
1 or 2 aluminum blind rivet
Filtration Media:
10 thru 50 PPI Black crest reticulated HF1 foam
Face Grids:
.025 3003H14 Expanded aluminum
Tolerances:
Length ± 1/16, width ± 1/16, thickness ± 1/32
Finishes:
Chemical film, Clear or Gold Irridite, Clear or Black Anodize (available upon request)
Standards:
UL 900 Class II, UL 94 HF-1
Efficiency:
MERV 5-8
Classifications:
Telcordia NEBS GR-63-Core
Telcordia NEBS GR-78-Core
FMVSS 302

Foilx filter

Foilx

FOILX air filters are composed of aluminum foil that has been slit and expanded. The filtration media for this filter consists of either flat expanded foil or layers of corrugated expanded foil, depending on frame thickness. The face grids are expanded aluminum.

ApplicationsThis filter is commonly used in electronic equipment, package air conditioning units, home heating and air conditioning central units and kitchen range hoods.Typical SpecificationsFrame:
.025 aluminum channel
Closure:
Aluminum blind rivet
Filtration Media:
Multiple layers of .002 slit and expanded aluminum foil
Face Grids:
Slit and expanded aluminum
Tolerances:
Length ± 1/16, width ± 1/16, thickness ± 1/32
Thickness:
3/32, 1/4, 5/16, 3/8, 7/16, 1/2, 3/4, 7/8, 1 7/8,
(Other thicknesses may be available.)
Finishes
Chemical film, Clear or Gold Irridite, Clear or Black Anodize (available upon request)
Efficiency:
ASHRAE Standard 52
Average Arrestance: 1 - 73%
2 - 75%
Test conducted at 350 FPM
MERV 4Airflow:

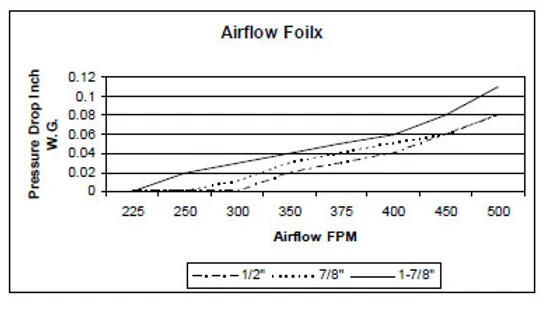

Foilx filter airflow chart

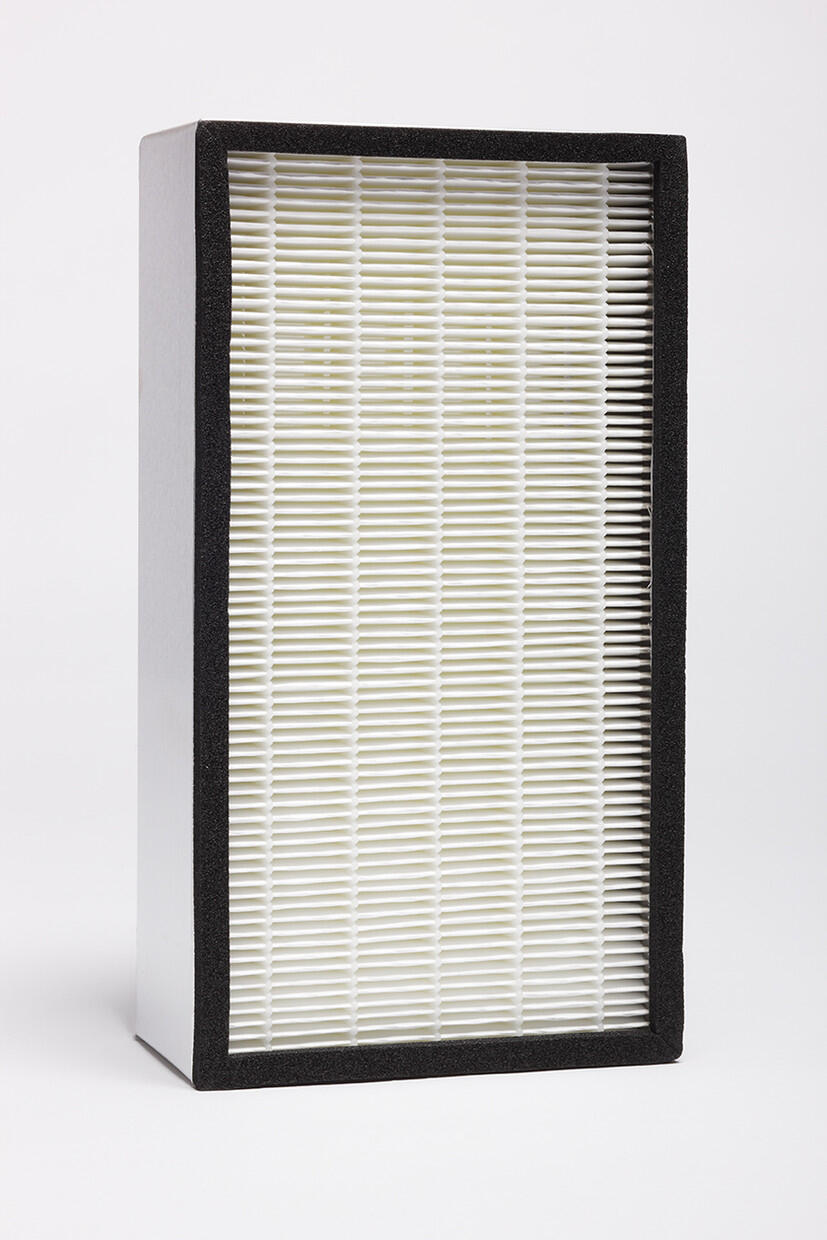

Hepax filter

Hepax

HEPAX air filters are a minimum of 99.97% efficient on .3 micron particles unless otherwise specified by the customer. The filtration media for these filters is micro glass fiber media. The filters are constructed in the minipleat design. We are not building filters with aluminum separators between the pleats. The frame material available for these filters is steel, aluminum, or plastic. HEPAX is available in a variety of thicknesses determined by application. Gasket is usually neoprene, but is also available in IV2. Filters may be pressure tested and we also offer efficiency testing.

ApplicationsThe HEPAX is for applications where tolerances require cleanliness at the submicronic level. Traditionally the HEPA filter has been thought of as used in clean rooms and laminar flow benches, but over the years this level of cleanliness have been the backbone of much of the most advanced technology. All hard disk drives have a HEPA in them. Most laser equipment has HEPA’s in them. Even vacuum cleaners boast HEPA filtration systems. They can be used in almost any application where the cleanliness of the air source can improve the reliability and/or the accuracy of the product or process.Typical SpecificationsFrame:
26 ga. Galvanized Steel, .025 and .040 3003H14 Aluminum, ABS Plastic
Closure:
Aluminum or steel blind rivet, staples, or solvent bonding
Filtration Media:
Micro Glass Fiber in latex binder paper
Face GridsIf requested:
slit and expanded aluminum
Tolerances:
Length ± 1/16, width ± 1/16, thickness ± 1/32 (closer tolerances may be available)
Potting:
Urethane and other proprietary adhesives
Gasketing:
Neoprene and IV2
Finishes:
(Available upon request for aluminum frame)
Chemical Film, Clear or Gold Irridite, and Clear or Black Anodize
Air Flow and Resistance:
Air flow and resistance information will be determined after filter design.

Indx filter

Indx

INDX media consists of layers of corrugated wire cloth with face grids of expanded galvanized steel. They have either an aluminum or steel miter cornered channel frame.INDX-A: Aluminum model
INDX-S: Steel model

ApplicationsThe INDX is a roughing filter, which removes the large contaminates from the air stream and to protect more expensive high efficiency filters. They are designed to have durable features and low resistance filtration media that lasts for years. These filters are also effective in grease removal such as commercial environments where cooking oils and grease create problems with flammable deposits in air exhaust systems. The INDX filters are made for applications where frequent cleanings are required and are available in either galvanized steel or aluminum constructions.Typical SpecificationsFrame:
16ga. Galvanized Steel or .04 Aluminum
Closure:
1 - 2 Steel blind rivets or 1 - 2 aluminum blind rivets
Filtration Media:
Multiple layers corrugated woven wire
Face Grids:
Slit and expanded galvanized steel
Tolerances:
Length ± 1/16, width ± 1/16, thickness ± 1/32
Thicknesses:
1/2, 7/8, 1 3/4
(only available in these standard depths)
Airflow:

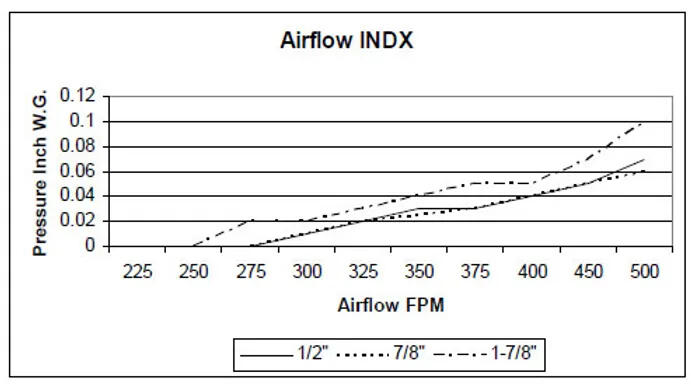

Indx filter airflow chart
Mistx filter

Mistx

The MISTX is designed to offer moisture or oil mist laden air cool metal surfaces to condense on which removes these corrosives from the air. The Mistx operates most effectively at 450 fpm to 550 fpm with an efficiency of >90% on moisture droplets > 20 micrometers. The filter also acts as a particulate filter due to its design of multiple layers of woven wire, which become wet as the filter starts removing moisture and oil from the air stream. Their construction of galvanized steel insures their long life even through rough handling and frequent cleaning.

ApplicationsMISTX filters eliminate water droplets, oil mist, and grease from air streams in industrial and commercial environments. These filters are effective in applications where outsides air maybe moisture laden from fog or steam. The Mistx is effective on indoor air, which has oil mist, moisture, or grease from cooling coils, machining processes, evaporative processes, or commercial kitchens. This filter is designed to be installed with a drain system to remove unwanted moisture, oil, or grease condensation from the filter media.Typical SpecificationsFrame:
16ga Galvanized steel
Closure:
2 Steel blind rivets
Filtration Media:
Layers of expanded aluminum and screenwire
Face Grids:
Slit and expanded galvanized steel, five 3/8” drain holes
Tolerances:
Length ± 1/16, width ± 1/16, thickness ± 1/32 (closer tolerances may be available)
Gasket:
1/2 x 1/8 Close cell neoprene with PSA one side (optional)
Standard Sizes:24 x 24 x 2
12 x 24 x 2
24 x 12 x 2
with or without gasket
Efficiency:
MERV

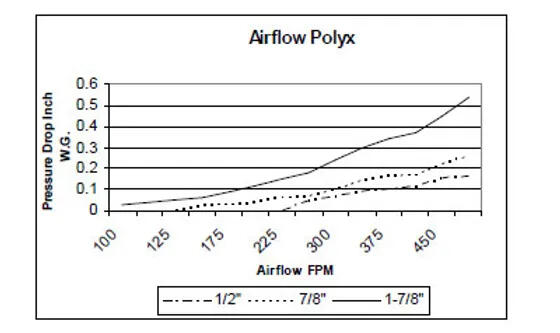

Polyx filter airflow chart

Polyx

POLYX air filters are made of progressively bonded uniform non-woven polyester filtration media and expanded aluminum face grids. The polyester is manufactured using advanced technology air laid equipment. This process produces a media of high quality, uniformity, and excellent filtration performance.

ApplicationsPOLYX filters are frequently used in electronic cabinets where blowers are drawing air from the floor level or cabinets which are located in an office environment. Many are purchased to replace the foil media type filters electronic cabinets are fitted with by the manufacturers. This easily cleaned filter is also resistant to most inorganic alkalis, salts, and acids as well as commonly used organic chemicals. These filters are also used in air handling units and home forced air furnaces.Typical SpecificationsFrame:
.025 aluminum channel
Closure:
Aluminum blind rivet
Filtration Media:
Non-woven polyester
Face Grids:
Slit and expanded aluminum
Tolerances:
Length ± 1/16, width ± 1/16, thickness ± 1/32 (closer tolerances may be available)
Thicknesses:
7/16, 1/2, 3/4, 7/8, 1 7/8
(other thicknesses may be available)
Finishes
Chemical film, Clear or Gold Irridite, Clear or Black Anodize (available upon request)
Standards:
ASHRAE Standard 52
Size: 1/2" 1"
Initial Resistance: .13.17 in. w.g.
Average Arrestance: 60% 65%
Efficiency:
MERV 4-8
Airflow:

Polyx filter airflow chart

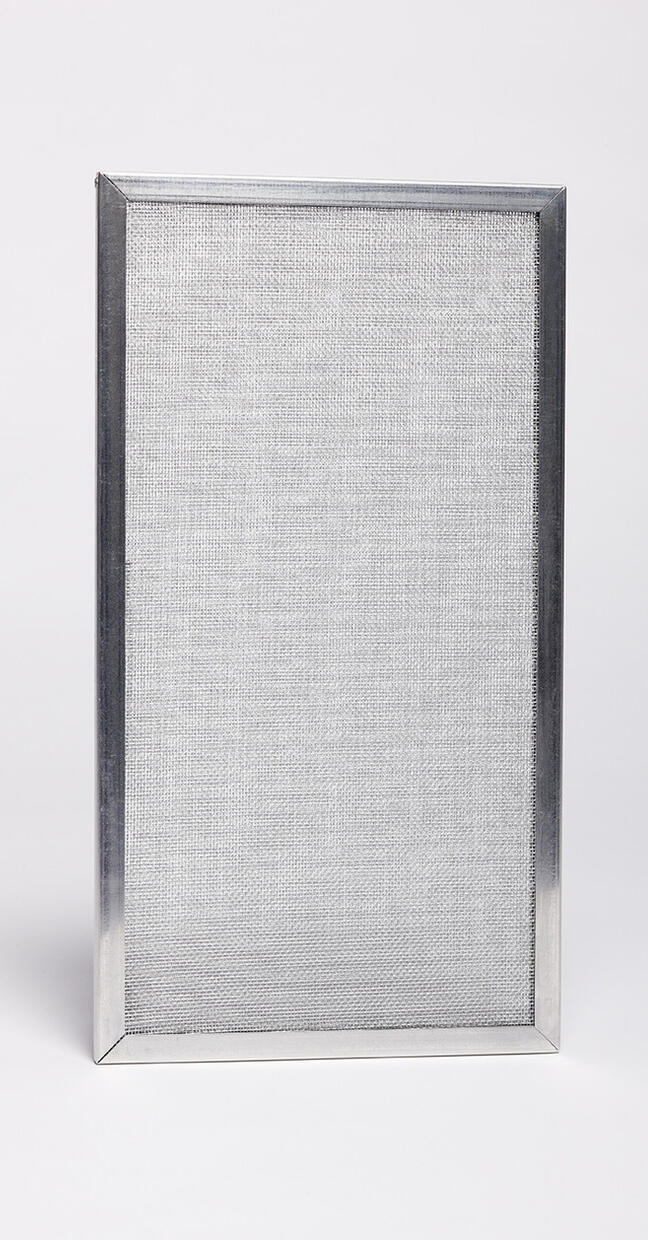

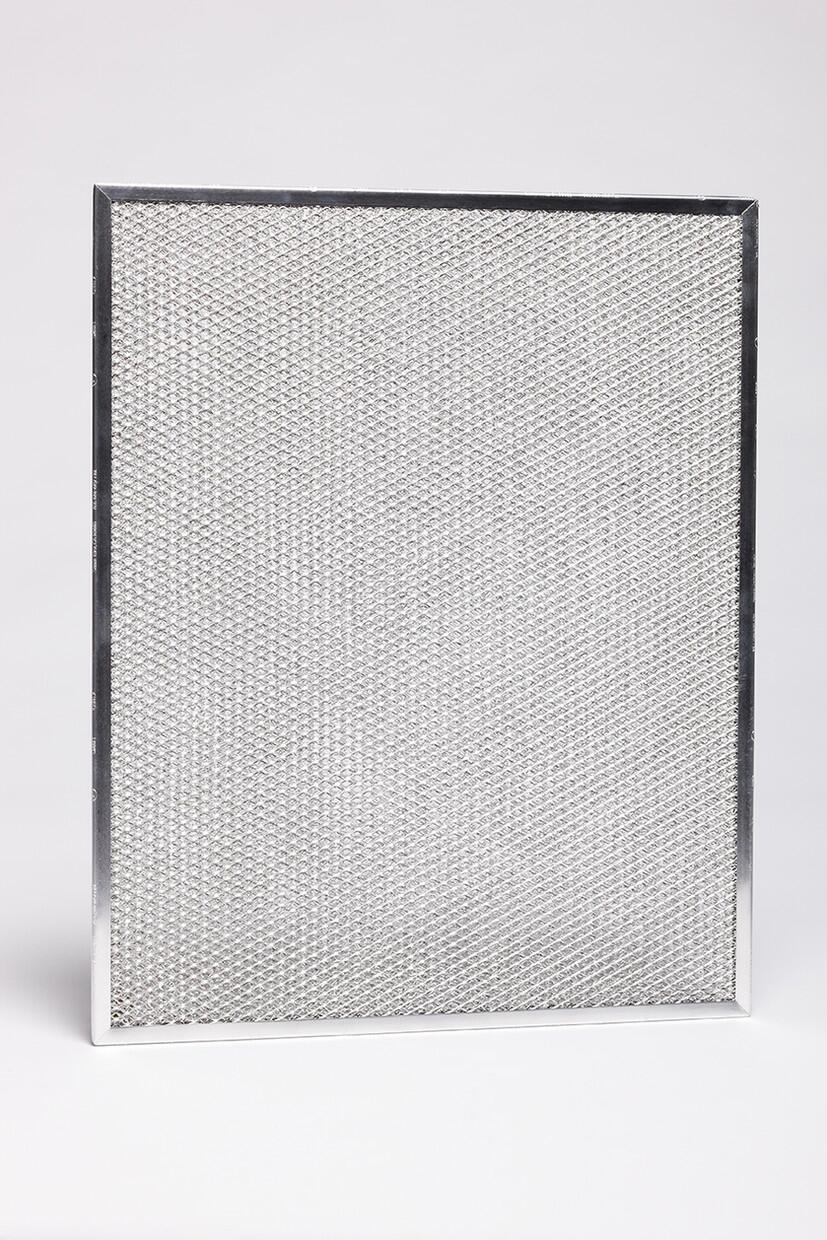

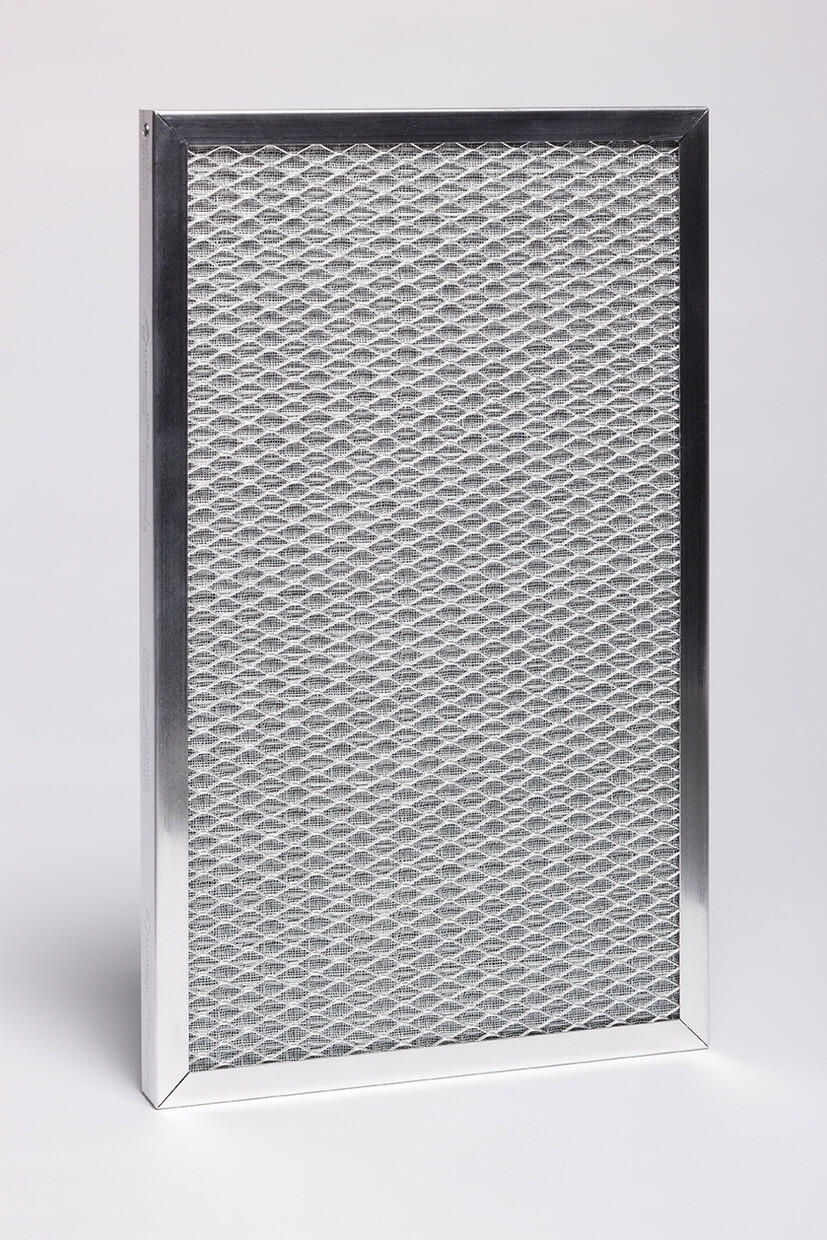

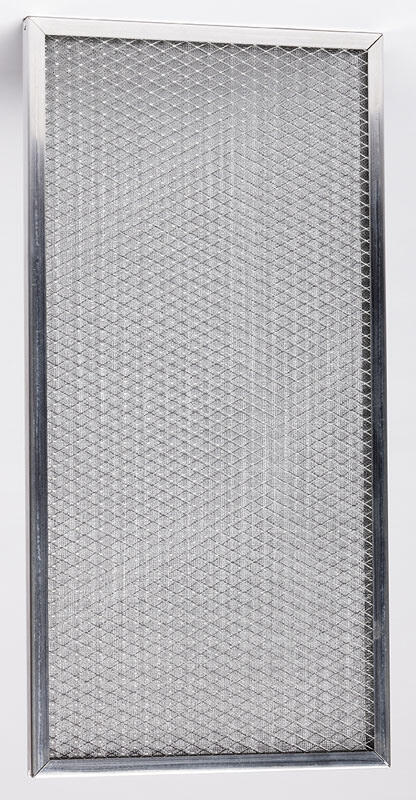

SW filter

SW/SWX

SW and SWX filtration media is either flat or corrugated wire cloth.The SW air filter is made up of all woven aluminum wire.The SWX air filter is made up of face grids of expanded aluminum and inner layer of woven aluminum wire.

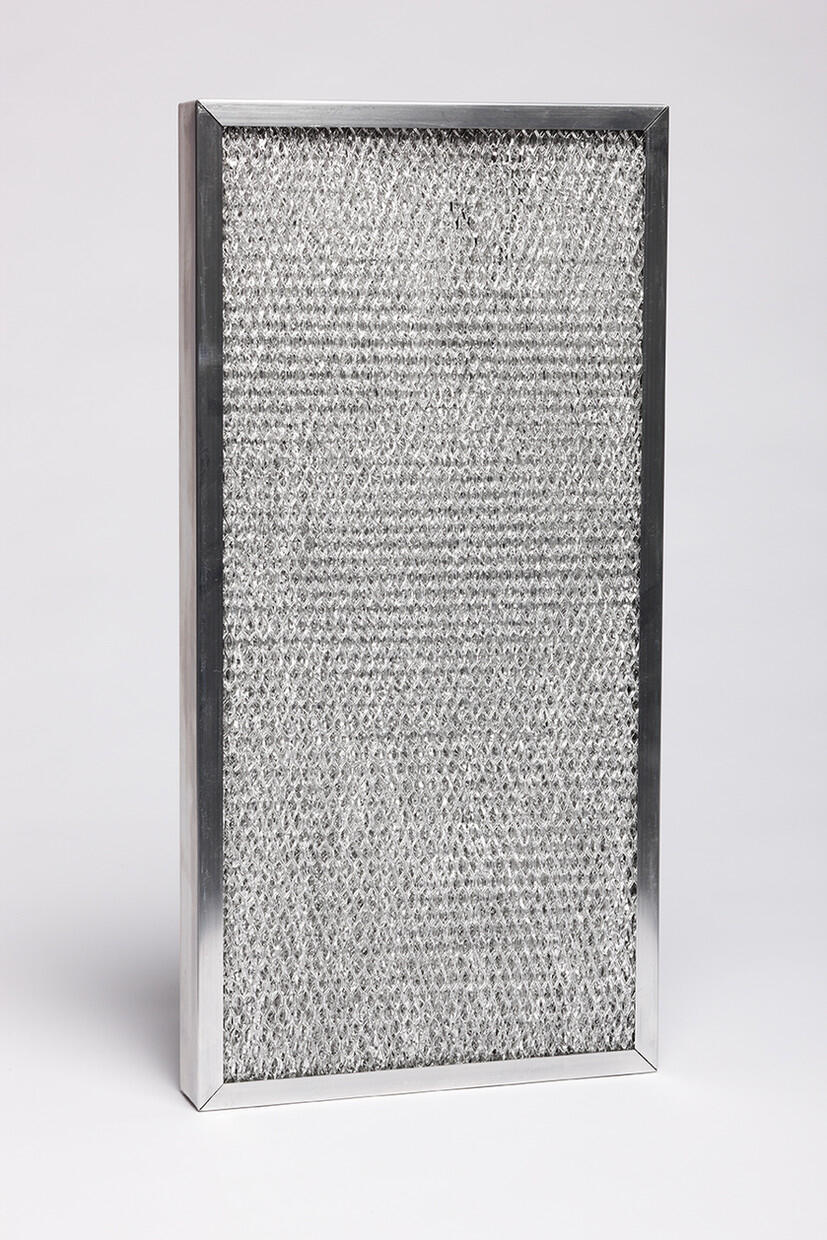

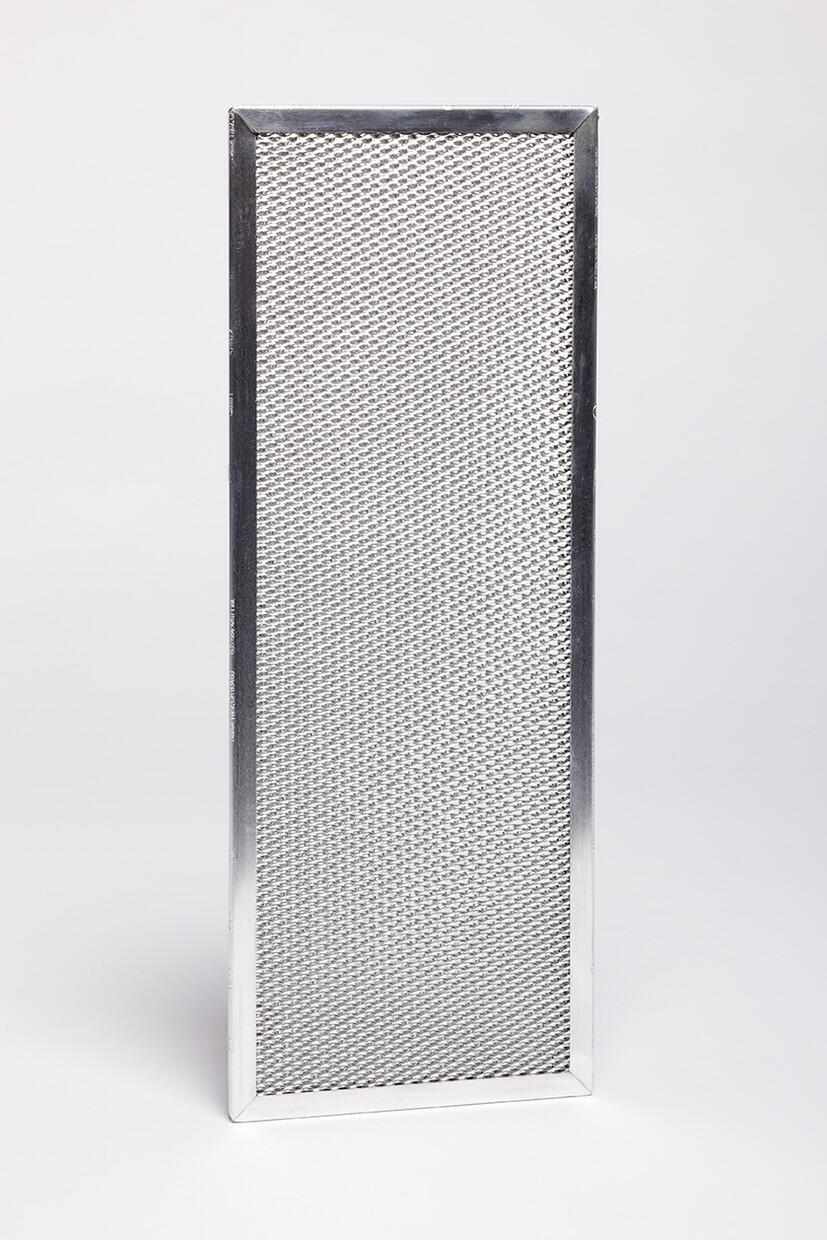

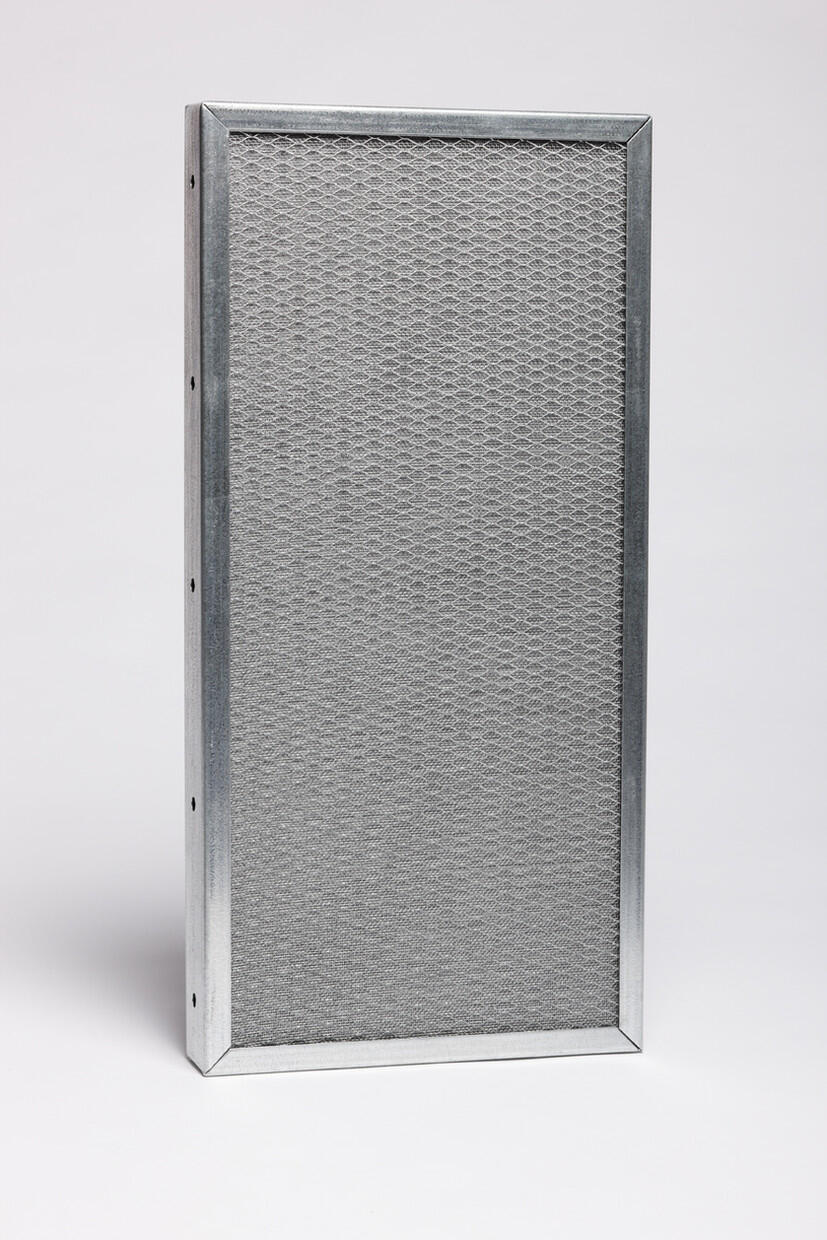

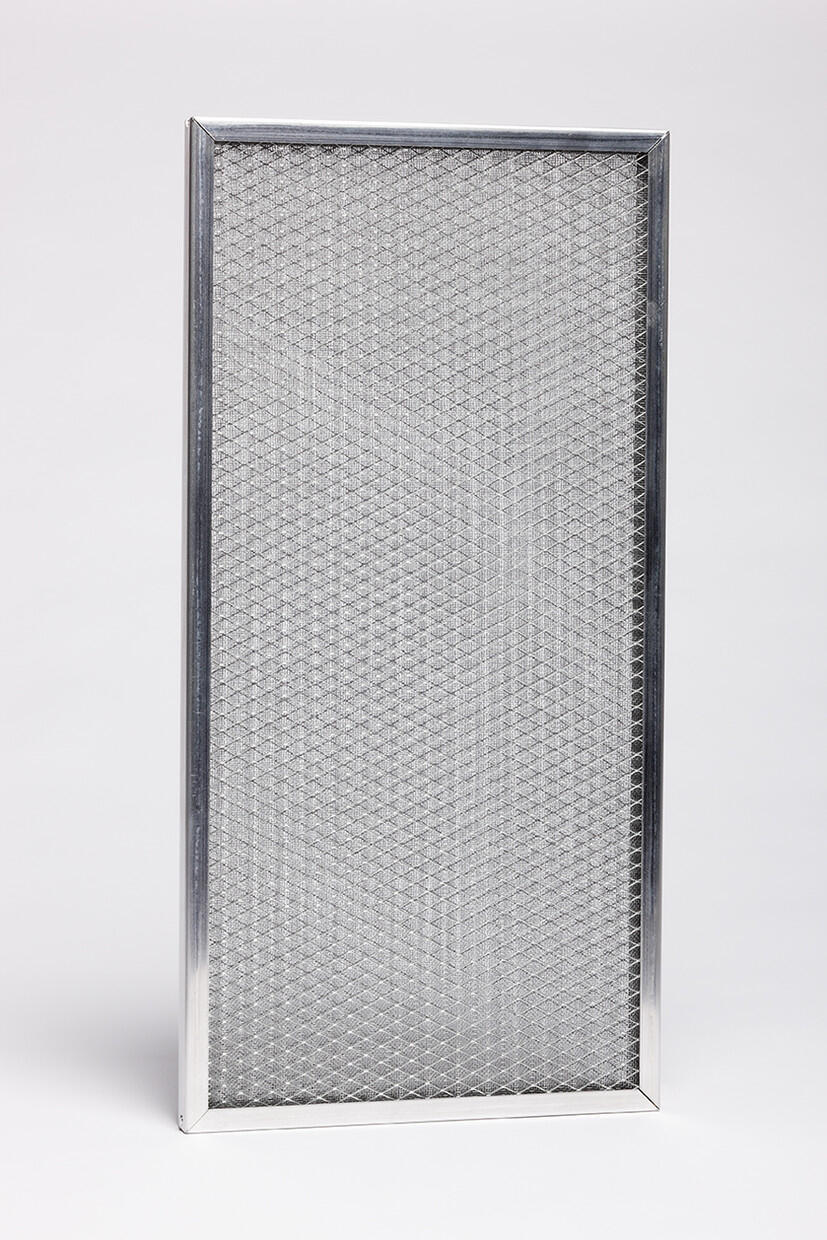

SWX filter

ApplicationsThe SW and SWX have become an industry standard for durability and efficiency. This permanent washable filter offers relatively low resistance and high efficiencies at high velocities. The SW and SWX can be found in electronic cabinets, forced air heaters, electrostatic air cleaners and many more applications. This filter has been in use for more that 30 years and is still an excellent choice for a filter to remove large particles and stands up to cleaning year after year.Typical SpecificationsFrame:
.025 aluminum channel
Closure:
Aluminum blind rivet
Filtration Media:
.010 strand 18 X 16 aluminum screenwire
SW Face Grids:
Slit and expanded aluminum
SWX Face Grids:
Screenwire
Tolerances:
Length ± 1/16, width ± 1/16, thickness ± 1/32
SW/SWX Thicknesses:
3/32, 1/4, 5/16, 3/8, 7/16, 1/2, 3/4, 7/8, 1 7/8,
(Other thicknesses may be available.)
Finishes:
Chemical film, Clear or Gold Irridite, Clear or Black Anodize (available upon request)
Efficiency:
MERV 4-8
Airflow:

SW filter airflow chart

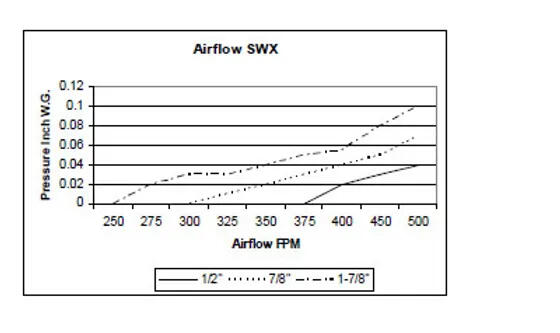

SWX filter airflow chart

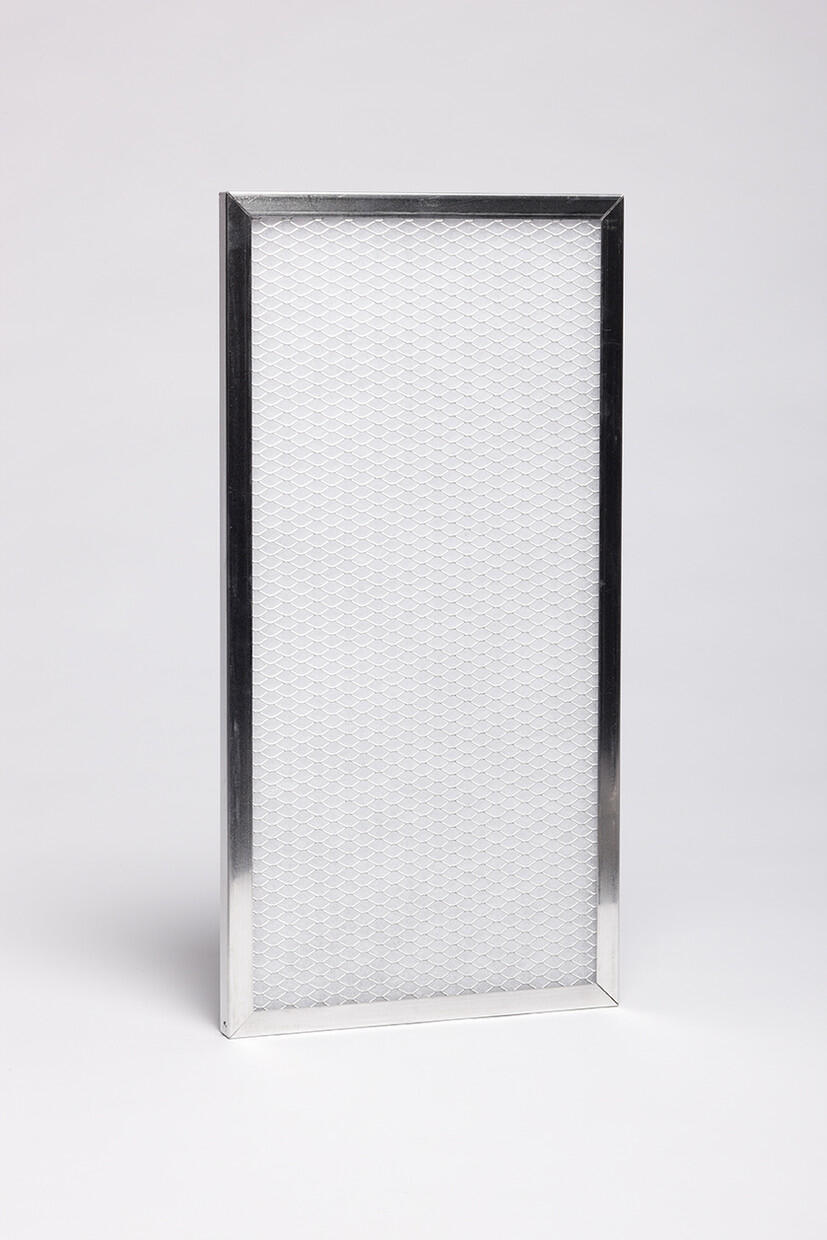

Techx filter

Techx

TECHX filtration media is a mixture of polypropylene and modacrylic fibers. The exchange of electric charge between these dissimilar materials produces stable static electric charges. This creates a greatly improved filtration media to trap fine particles. This media corrugated together with expanded metal makes up the inner layers of this filter. The face grids are made of heavy expanded aluminum in a one piece mitered corner aluminum frame held by an aluminum blind rivet.

ApplicationsThe Filter Factory is proud to offer this filter which exhibits excellent efficiencies and low resistance. This media has been used for respirators, room air purifiers and in the automotive industry for recirculating filters for cars. This media is capable of catching particles as small as cigarette smoke.Typical SpecificationsFrame:
.025 aluminum channel
Closure:
Aluminum blind rivet
Filtration Media:
Electrostat 90LR split fiber polyester
Face Grids:
Slit and expanded aluminum
Tolerances:
Length ± 1/16, width ± 1/16, thickness ± 1/32 (closer tolerances may be available)
Thicknesses:
3/32, 1/4, 5/16, 3/8, 7/16, 1/2, 3/4, 7/8, 1 7/8
(other thickness’ may be available)
Finishes:
Chemical film, Clear or Gold Irridite, Clear or Black Anodize (available upon request)
Efficiency:
MERV 13 (90GPSM)
Minimum NaCL: 80%
Minimum DOP: 50%
Airflow:

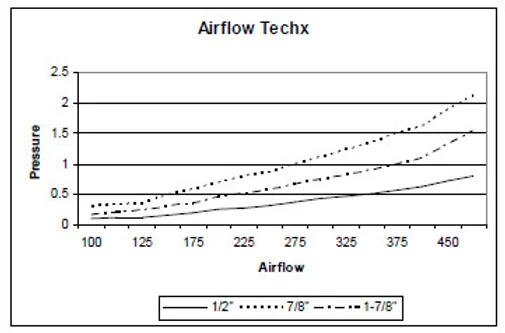

Techx filter airflow chart

Our Capabilities

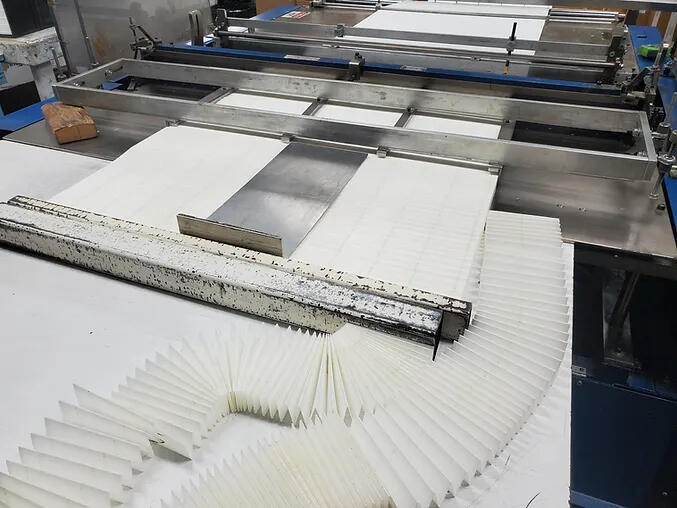

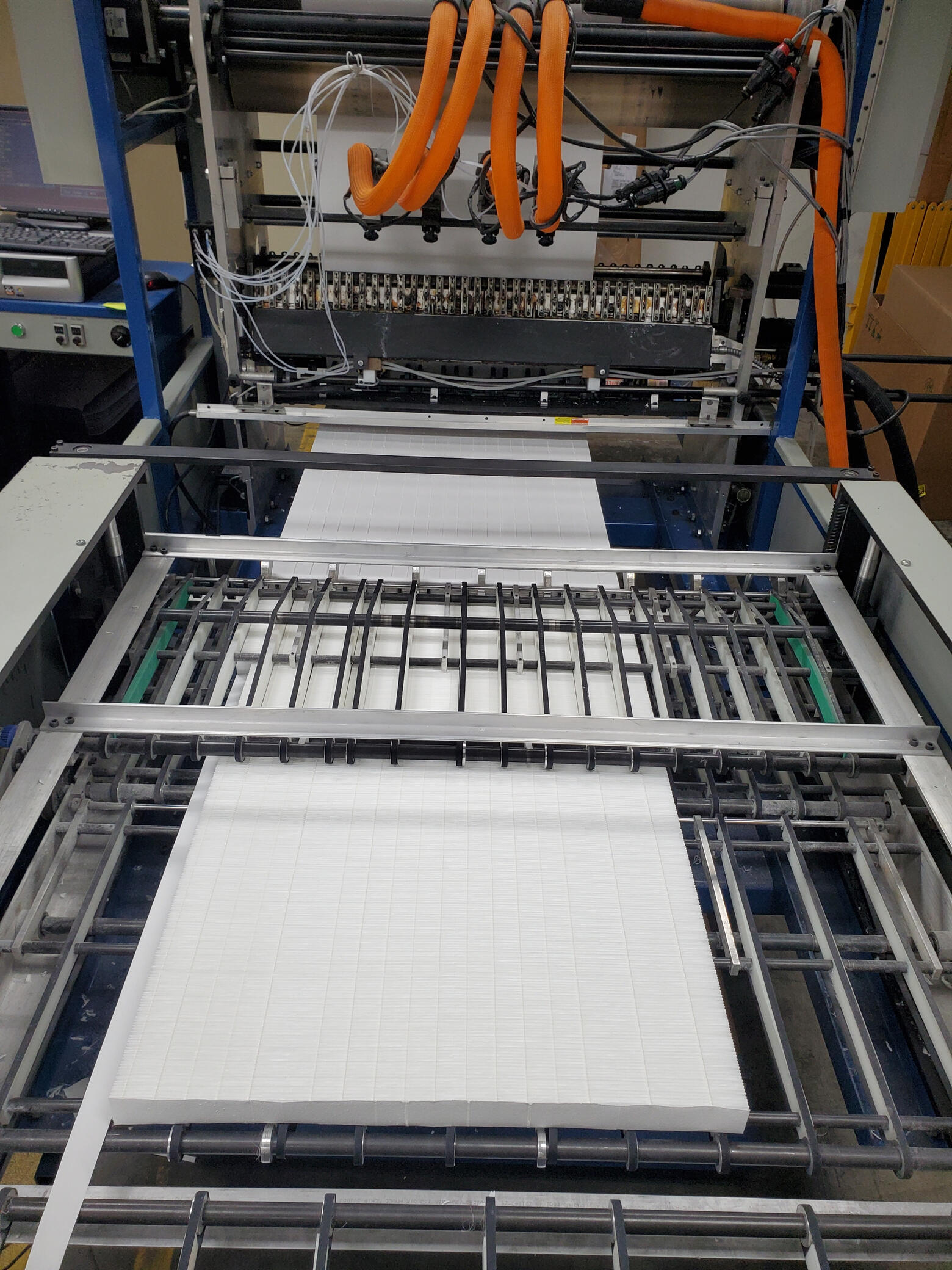

PleatingSpecializing in pleating filter media, we maximize surface area and filtration efficiency. Our advanced pleating technology ensures precise and uniform folds, resulting in highly effective and long-lasting filters suitable for various applications, from industrial to residential use.

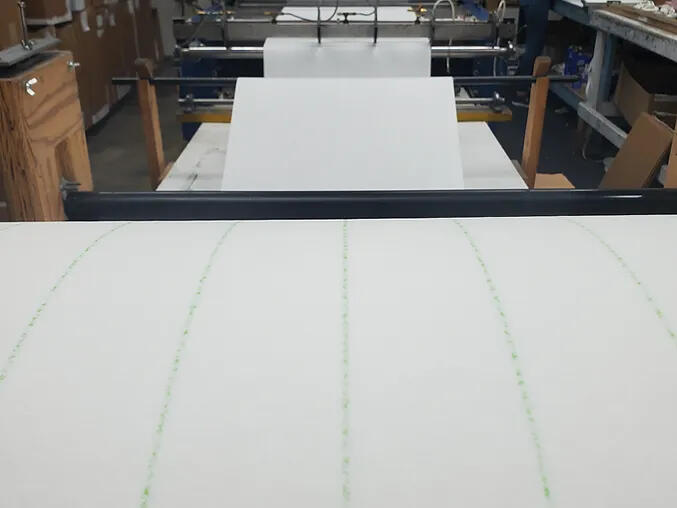

pleating machine

Roll FormingWith roll forming capabilities, we produce continuous lengths of filter components with exceptional consistency and quality. Utilizing cutting-edge techniques, we manufacture sturdy and reliable filter frames and housings to meet large-scale production demands with precision and efficiency.

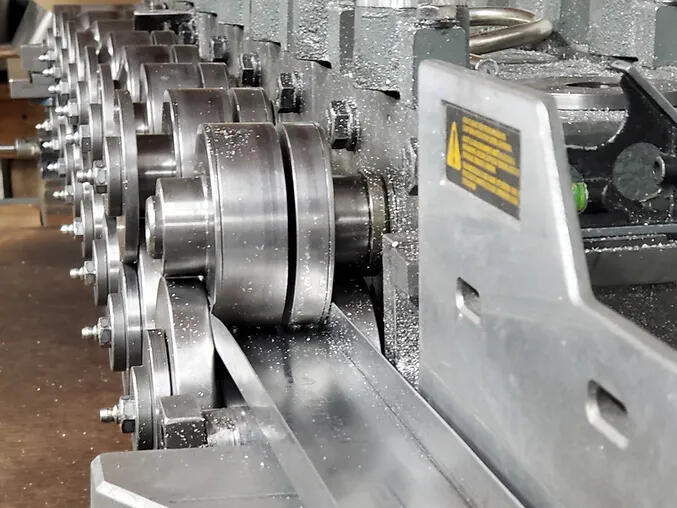

roll forming machine

Die Cutting / Slitting / Metal ExpansionWe offer precise die cutting and slitting services to create custom filter components tailored to specific needs. Our advanced equipment and skilled technicians ensure intricate and accurate production, providing a perfect fit and exceptional performance for your filtration requirements.

die cutting, slitting, metal expansion demonstration

Quality Control & TestingOur rigorous quality control measures and advanced testing processes ensure that every air filter meets the highest standards of performance and durability. With state-of-the-art testing facilities, we evaluate each filter’s efficiency and reliability to guarantee optimal air quality for our clients.

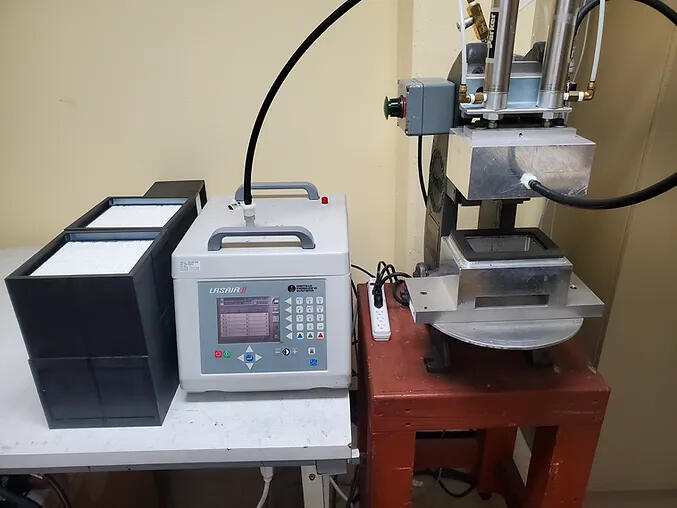

quality control testing machines

UL CertificationWe achieve UL (Underwriters Laboratories) certification for our air filters, ensuring they meet stringent safety and performance standards. This certification provides assurance that our filters are reliable and effective for both industrial and residential applications.

UL certification logo

Design/Application GuidanceWe provide expert design and application guidance to help you choose the best filtration solutions for your needs. Our experienced team offers customized recommendations and support, ensuring that our filters meet your specific performance criteria and application requirements.

design & application guidance office


What's New

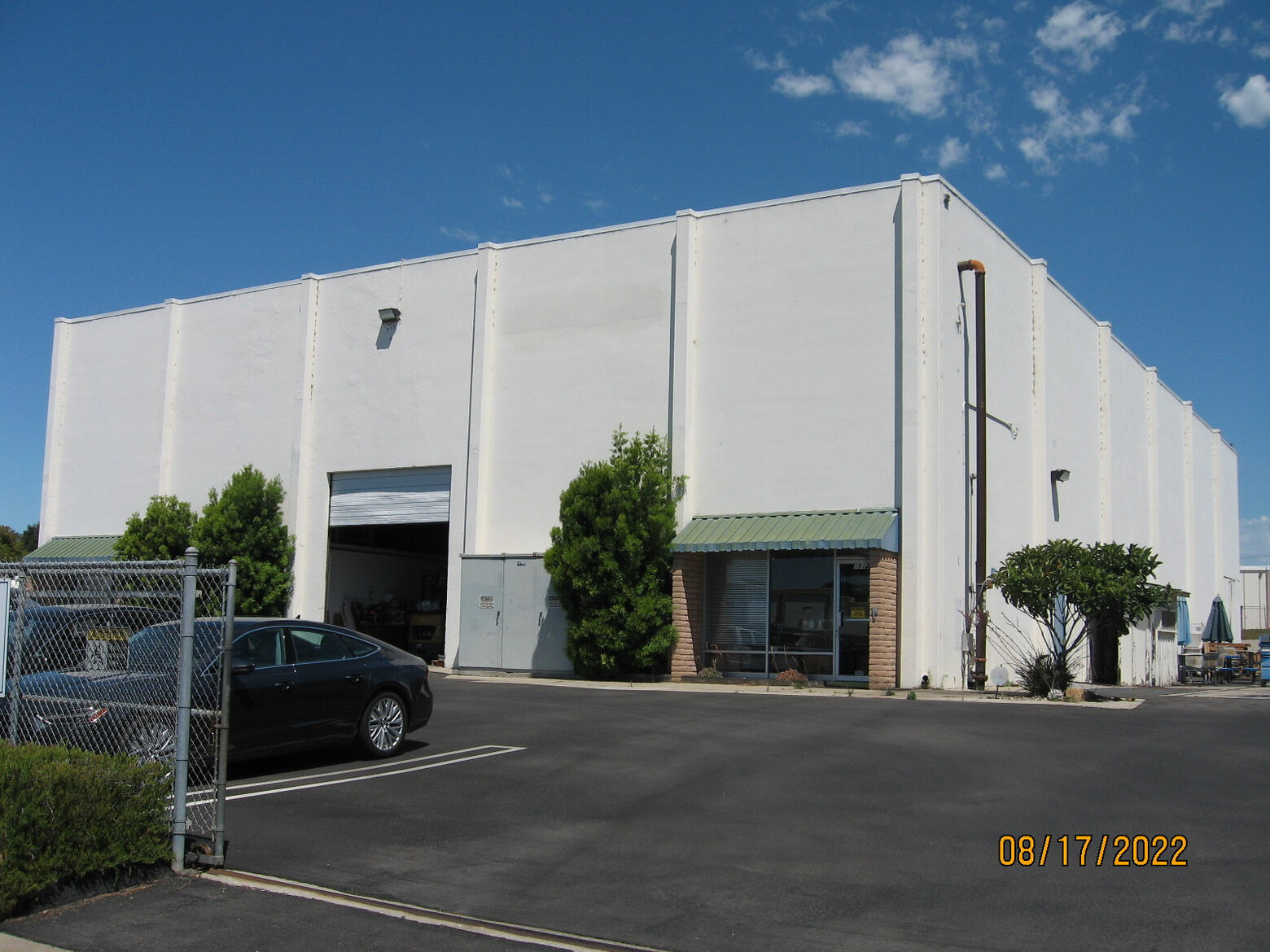

image of our building

Our LocationThe Filter Factory, Inc. is located in central California. Just a few steps off the beaten path. We enjoy 10,000 square feet of floor space plus we have two mezzanines adding another 7,000 square feet of light and heavy storage. We have separated our production areas into low efficiency panel assemblies and pleated filter assemblies. Having our pleaters near our assembly in a controlled environment, allows us to pay close attention to quality. Having our test lab close by keeps us on track, with air flow and efficiency. Having our production equipment and assembly all in one place helps us to maintain quality control over the entire manufacturing process. It is rare to find a filter company with this much sophisticated equipment, although here we are. We are a filter manufacturer, not an assembly house, and definitely not a distributor.

Our MachinesSpeaking of machines, we have a wide array of band saws, notchers, shears, roll formers, presses, and corrugators within our machine shop. We also have four metal expanders. These make it possible for us to make the majority of the components for our filters from the most basic of materials (i.e. sheet metal, aluminum or steel coil), and therefore save on material costs. We have two machines that allow us to offer a wider variety of filter media types with significantly shorter lead times and more cost effective prices. Our Chandler Pleater can pleat cellulose or screen medias up to 48” wide from .625” to 2.5”. Our newest addition, a Solent pleater can pleat from .75” up to 30” of the high efficiency glass media used in HEPA filters.

high tech machine example
image of quality control testing instruments

Quality ControlAlthough it is nice to be able to say we have machines and the ability to make filters and media, we also realized quality control is a concern with all customers regardless of who their customers are. In efforts to guarantee quality, we have established our quality control system and have acquired two air flow tunnels and three laser particle counters. We also have a designated QC Lab, where this equipment is used under a controlled environment. Calibration is done and recorded annually for all inspection equipment (for those of you interested in paperwork).

Order HistorySomething that is not necessarily “new,” is our computer records; they go all the way back to the beginning of The Filter Factory. A new twist on this is that we also have the full ALFCO database and what there is of the Air Filtration Products database (both closed in 2004). Because of this in many cases we can not only tell you what your company ordered ten years ago, but we can also pull the layout and therefore duplicate it, while keeping with the current quality standards. Or if you need something like before, but slightly different, we do have the capability to help in the design of the filter so that it is the same, but better.

a very old image of our founder entering data

Certifications & memberships

proud member of NAFA (National Air Filtration Association) seal
Ashrae certification seal
UL certified seal
Better Business Bureau (BBB) - A+ rated

There are no standards higher than our own.

Contact / FAQ

faq

Our business hours are Monday through Friday from 8 AM to 5 PM. We are closed on weekends and public holidays. You can reach us during these hours for any inquiries or support.

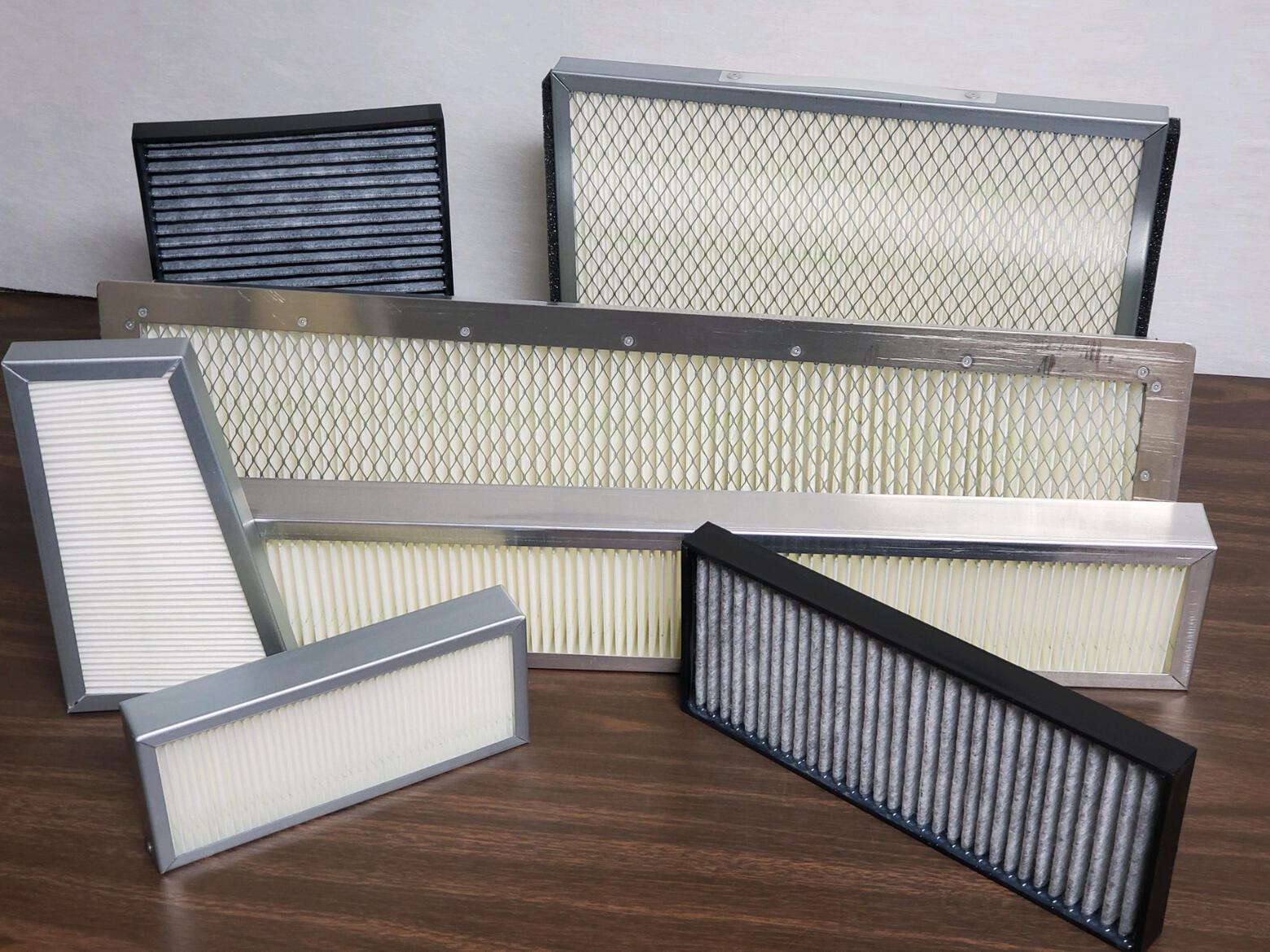

Yes, we specialize in manufacturing replacement filters for a wide range of applications, including HVAC systems, industrial equipment, and more. We have thousands of part numbers, and yours is probably in there. We can also create custom replacements to fit your specific needs.

The number on your filter typically indicates the part number or our UL file number. If you have any doubts, please contact us, and we can help you verify the correct part number for your filter.

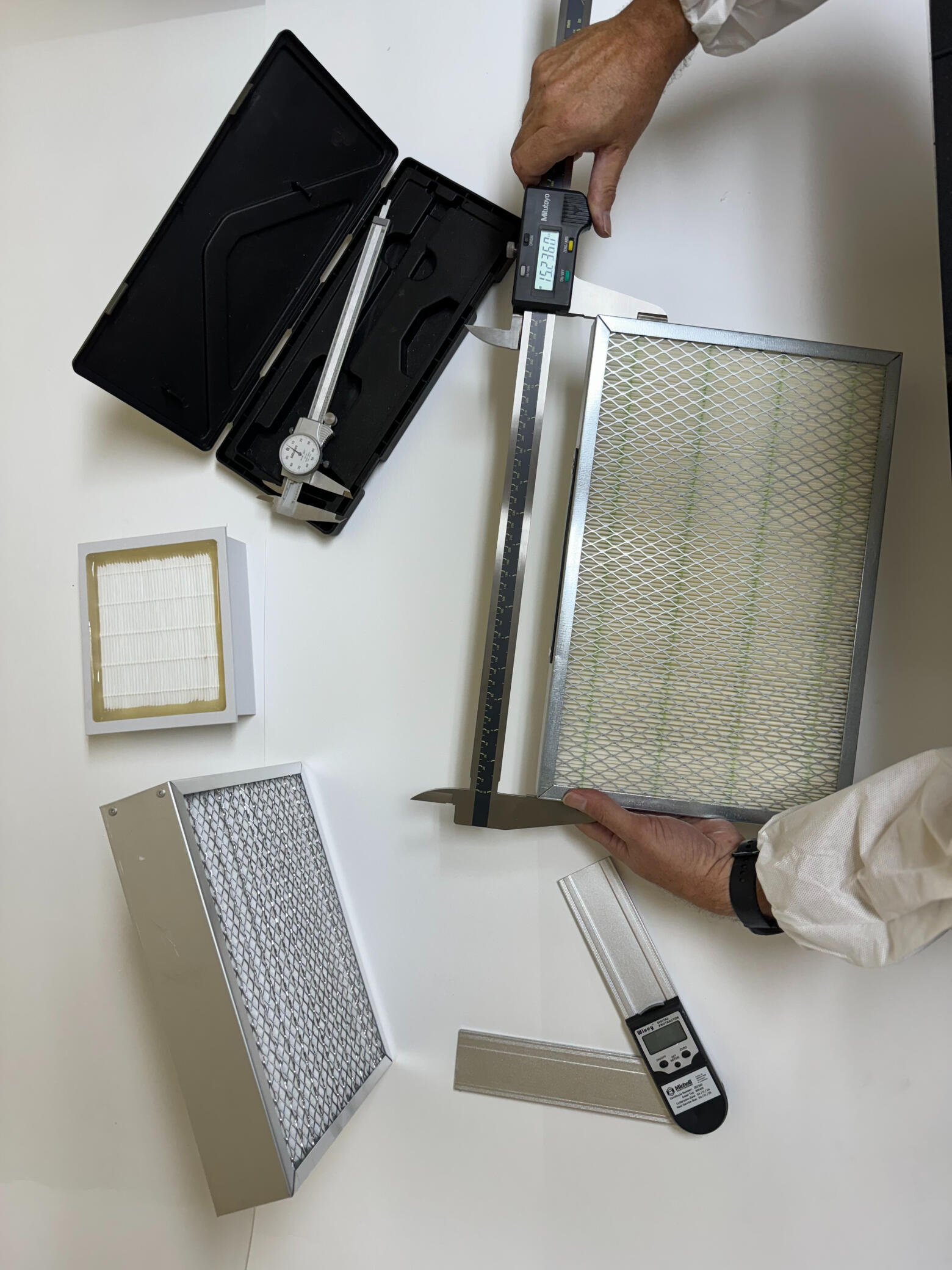

To measure your filter, use a tape measure to determine the length, width, and depth. Be sure to measure carefully as we may need to make your filter from your measurements. Be sure to note any unique features such as holes, handles, and/or surface finish. For precise guidance, refer to our measurement guide on our website.

A nominal size filter is a rounded approximation and the actual size is slightly smaller. For example, a nominal 16x20 filter may have actual dimensions of 15.5x19.5.

To describe the frame, specify the material (e.g., aluminum, galvanized steel), the dimensions, and any special features like a gasket or flanges.

The active face area is the part of the filter that allows air to pass through for filtration. It excludes the frame and any solid edges. In low efficiency filters, this area would be the area not covered by the frame lip. However, in a high efficiency filter, air will seek the path of least resistance and will flow under the frame lip to pass through the filtration media.

We do not make cabin air filters for cars, although we do make them for heavy equipment and operator comfort.

Yes, we have a minimum charge to cover basic manufacturing and handling costs. The exact amount depends on the type of filter and order size. Please contact us for a detailed quote based on your requirements.

We typically provide quotes within 24-48 hours of receiving your request. For complex or custom orders, the process may take slightly longer. We strive to deliver prompt and accurate quotations to meet your needs.

UL 900 is a flammability rating for air filters. UL 94 is a flammability rating for foam plastic materials. Depending on your needs, filters may require compliance with one or both standards.

"Media" refers to the material within the filter that captures contaminants. Different media types are used for various applications, such as activated carbon, fiberglass, pleated paper, polyester, polyester foam, glass fiber, electret, carbon impregnated polyester, expanded metal, each offering unique filtration properties.

We can manufacture filters that combine multiple media types to meet specific filtration needs. This might include combining particulate and gas-phase media to provide comprehensive air cleaning solutions.

We offer airflow testing and efficiency testing for our HEPA filters. For other types of testing, we collaborate with external facilities to provide comprehensive evaluations, which may incur additional charges.

contact

Accessibility Statement

At The Filter Factory, Inc., we are committed to ensuring digital accessibility for people with disabilities. We are continually improving the user experience for everyone and applying the relevant accessibility standards to our website, thefilterfactory.com.


Measures to Support Accessibility:

  • Continuous Improvement: We are regularly updating our website to ensure accessibility compliance and improve usability.

  • Integration of Accessibility Features: We have integrated various accessibility features, such as text-to-speech compatibility and keyboard navigation.

  • Regular Testing: We conduct periodic accessibility reviews and testing to identify and resolve issues.


Conformance Status

The Web Content Accessibility Guidelines (WCAG) define requirements for designers and developers to improve accessibility for people with disabilities. thefilterfactory.com aims to conform to WCAG 2.1 Level AA, ensuring a comprehensive and inclusive online experience for all users.


Feedback

We welcome your feedback on the accessibility of thefilterfactory.com. Please let us know if you encounter any accessibility barriers. We aim to respond to feedback within 5 business days.


Technical Specifications

The accessibility of thefilterfactory.com relies on the following technologies:

  • HTML

  • CSS

  • JavaScript

These technologies are used to ensure compliance with the accessibility standards.


Assessment Approach

The Filter Factory, Inc. assesses the accessibility of thefilterfactory.com through:

  • Self-evaluation: We conduct internal evaluations to ensure ongoing compliance.

  • Third-party evaluation: We occasionally enlist external agencies to perform detailed accessibility audits.


Commitment to Improvement

We are committed to improving our website’s accessibility and will continue to take proactive measures to ensure that thefilterfactory.com is usable by everyone, regardless of ability or disability.


Accessibility Resources

For additional support or resources, please visit the following websites:


Privacy Policy

Last updated: June 20th, 2024The Filter Factory, Inc. (“we,” “us,” or “our”) operates the website thefilterfactory.com (the “Site”). This Privacy Policy outlines how we collect, use, and protect your personal information. By using our Site, you consent to the data practices described in this policy.


1. Information We Collect

We only collect personal information that you voluntarily provide to us through our contact form or other forms of communication. The types of personal information we may collect include:

  • Contact Information: Name, email address, phone number, and any other information you choose to provide.

We do not collect personal information automatically, except as described below in the section on cookies and analytics.

2. How We Use Your Information

The information you provide is used for the following purposes:

  • Communication: To respond to your inquiries and provide customer support.

  • Improvement: To improve our products, services, and website content based on your feedback.

3. Cookies and Tracking Technologies

We use cookies and similar tracking technologies to analyze activity on our Site and improve our services. The technologies we may use include:

  • Cookies: Small files stored on your device that collect information about your browsing activities. You can disable cookies through your browser settings, but some parts of our Site may not function properly without them.

  • Google Analytics: We use Google Analytics to collect data about how visitors use our Site. This tool helps us understand website traffic and usage patterns. Google Analytics collects data such as your IP address, browser type, and pages visited. For more information on how Google collects and processes data, please visit Google’s Privacy Policy.

  • Facebook Pixel (Future Use): We may use Facebook Pixel to track conversions and gather information for targeted advertising on Facebook. Facebook Pixel collects data such as user interactions and conversion events. For more information, please visit Facebook’s Data Policy.

4. Data Sharing and Disclosure

We do not sell, trade, or otherwise transfer your personal information to outside parties without your consent, except as necessary to provide our services or as required by law. This does not include trusted third parties who assist us in operating our website, conducting our business, or serving you, as long as those parties agree to keep this information confidential.

5. Security of Your Information

We implement a variety of security measures to maintain the safety of your personal information. However, no method of transmission over the Internet or electronic storage is 100% secure. While we strive to protect your personal information, we cannot guarantee its absolute security.

6. Your Data Protection Rights

Depending on your location, you may have the following rights regarding your personal information:

  • Access: You have the right to request a copy of your personal information that we hold.

  • Correction: You have the right to request that we correct any inaccurate or incomplete information.

  • Deletion: You have the right to request that we delete your personal information, subject to certain exceptions.

  • Restriction: You have the right to request that we restrict the processing of your personal information.

  • Objection: You have the right to object to the processing of your personal information.

  • Data Portability: You have the right to request that we transfer your personal information to another organization or directly to you, under certain conditions.

To exercise any of these rights, please contact us using the contact information provided below.

7. Third-Party Links

Our Site may contain links to third-party websites. We do not control these third-party sites and are not responsible for their privacy practices. We encourage you to review the privacy policies of any third-party sites you visit.

8. Changes to This Privacy Policy

We may update this Privacy Policy from time to time. We will notify you of significant changes by posting the updated policy on our Site. Your continued use of the Site after any changes indicates your acceptance of the updated Privacy Policy.

9. Contact Us

If you have any questions about this Privacy Policy or wish to exercise your data protection rights, please contact us:


Terms of Use

Last updated: June 20th, 2024Welcome to thefilterfactory.com. These Terms of Use govern your use of our website and services. By accessing or using our website, you agree to be bound by these terms. If you do not agree to these terms, please do not use our website.


1. Acceptance of Terms

By accessing or using thefilterfactory.com, you acknowledge that you have read, understood, and agree to be bound by these Terms of Use, as well as our Privacy Policy, which is incorporated herein by reference.

2. Use of the Website

You agree to use our website for lawful purposes only. You are prohibited from:

  • Using our website to engage in any activity that is unlawful, harmful, or fraudulent.

  • Interfering with the operation of our website or disrupting the experience of other users.

  • Attempting to gain unauthorized access to our website, server, or network.

  • Using our website to distribute malware, viruses, or any other harmful code.

  • Copying, distributing, or disclosing any part of the website in any medium, including without limitation by any automated or non-automated “scraping.”

3. Intellectual Property

All content on thefilterfactory.com, including but not limited to text, graphics, logos, images, and software, is the property of The Filter Factory, Inc. or its content suppliers and is protected by United States and international copyright laws. Unauthorized use of any content may violate copyright, trademark, and other laws.

4. User Content

By submitting any content to thefilterfactory.com, you grant The Filter Factory, Inc. a worldwide, non-exclusive, royalty-free license to use, reproduce, modify, distribute, and display such content. You represent and warrant that you have the rights to submit such content and that it does not infringe any third-party rights.

5. Third-Party Links

Our website may contain links to third-party websites that are not owned or controlled by The Filter Factory, Inc. We are not responsible for the content, privacy policies, or practices of any third-party websites. You acknowledge and agree that The Filter Factory, Inc. shall not be liable for any damages or losses caused by your use of any third-party websites.

6. Disclaimer of Warranties

The website is provided on an “as is” and “as available” basis. The Filter Factory, Inc. makes no representations or warranties of any kind, express or implied, regarding the use or the results of this website in terms of its correctness, accuracy, reliability, or otherwise. The Filter Factory, Inc. shall have no liability for any interruptions in the use of this website. The Filter Factory, Inc. disclaims all warranties with regard to the information provided, including the implied warranties of merchantability and fitness for a particular purpose, and non-infringement.

7. Limitation of Liability

Under no circumstances shall The Filter Factory, Inc. be liable for any direct, indirect, incidental, special, consequential, or punitive damages that result from the use of, or the inability to use, this website, including but not limited to reliance by a user on any information obtained from The Filter Factory, Inc. that results in mistakes, omissions, interruptions, deletion or corruption of files, viruses, delays in operation or transmission, or any failure of performance.

8. Indemnification

You agree to indemnify, defend, and hold harmless The Filter Factory, Inc., its officers, directors, employees, agents, licensors, suppliers, and any third-party information providers to the service from and against all losses, expenses, damages, and costs, including reasonable attorneys’ fees, resulting from any violation of these Terms of Use (including negligent or wrongful conduct) by you or any other person accessing the service.

9. Modifications to the Terms of Use

The Filter Factory, Inc. reserves the right to modify these Terms of Use at any time. We will notify you of significant changes by posting a notice on our website. Your continued use of the website after any changes to the Terms of Use will constitute your acceptance of such changes.

10. Governing Law

These Terms of Use shall be governed by and construed in accordance with the laws of the State of California, without regard to its conflict of law principles. Any legal action or proceeding related to your access to or use of the website shall be instituted in a state or federal court in California. You agree to submit to the jurisdiction of, and agree that venue is proper in, these courts.

11. Contact Information

If you have any questions about these Terms of Use, please contact us:
